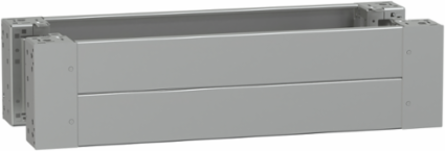

Schneider Electric NSYSPFX8200H Stainless Steel 316L Plinth 800 mm x 200 mm, IP30, IK10, 9 kg
Schneider Electric NSYSPFX8200H Stainless Steel 316L Plinth 800 mm x 200 mm, IP30, IK10, 9 kg
- MPN: NSYSPFX8200H
- PPN: SCH-NSYSPFX8200H
- UNSPSC: 39121324
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$2150.06/ EA
Description
Constructed from durable stainless steel 316L, this plain front panel plinth from Schneider Electric is designed to meet the demands of various multi-purpose applications. With a height of 200 mm and a nominal width of 800 mm, it provides a robust foundation for your enclosure needs, ensuring stability and reliability. The plinth is equipped with essential fixing elements and corner covers, facilitating easy installation and integration into your existing structures. Rated with an IP30 protection degree and IK10 impact resistance, it is well-suited for environments requiring enhanced durability and protection.
Features
- Stainless-steel, AISI 304L or AISI 316L
- Finish: Scotch-Brite® brushing, to help guarantee the durability in application
- Installation: Plinth fixing kit must be ordered (ref. NSYAPFXWM ) composed by fixing elements and drilling jig
- Contact to the floor increases the risk of corrosion
Specifications
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 4 corner cover, 1 front panel, 1 rear panel, 4 corner
- Local Publishable Date
- 2025-09-16
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- PRO_ACTIVE_COMPLIANCE
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- N
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Material
- stainless steel 316L
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- PanelSeT
- Surface Finish
- untreated
- Accessory Separate Part Category2
- enclosure accessory
- Stocking Flag
- Y
- Pep Code
- ENVPEP2107011EN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Local Data StatusPublishable
Legacy WEEE ScopeOut
EOLI Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeNo
ROHS EUR Full Compliance StatusPro-active compliance (Product out of EU RoHS legal scope)
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Device Applicationmulti-purpose
Fixing Modeby fixing element - on structure
Package Weight Lbs10.308 kg
Product Or Component Typeplinth front
ReturnabilityNo
Sustainable PackagingNo
Medium DescSpacial - plain front panel plinth W800 H200 stainless steel 316L
Product Kit IdentifierN
Global Commercial StatusCommercialised
Environment Attributes Main
- Take Back
- No, Nej
- ROHS Exemption Information
- Yes
- China ROHS Regulation
- X
- Environmental Disclosure
- ENVPEP2107011EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
EU ROHS DirectiveCompliant By Exemption , Pro-active compliance (Product out of EU RoHS legal scope)
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
IP Degree Of ProtectionIP30 complete plinth)
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2107011EN
General Attributes
- Product Or Component Type
- plinth front
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Width
- 31.5 in
Country of OriginUnited States
