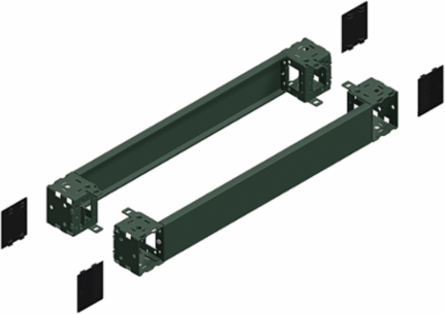

Schneider Electric NSYSPF12100 Electrical Enclosure Plinth 1200mm Width x 100mm Height, IP30, IK10
- MPN: NSYSPF12100
- PPN: SCH-NSYSPF12100
CAD
$150.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Front plinth for Spacial CRN, S3D, SF, SM, SD. 99 x 1200 mm. Multi-purpose enclosure accessory. Plinth side panels mounting support. Permanent permissible load 1300kg. Fixing mode by fixing element. Epoxy-polyester powder surface finish. Grey RAL 7022. IP30 complete plinth, IK10.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 3.94 in
Country of OriginBrazil, Costa Rica, Spain, India, Tunisia, United States
Physical Attributes
- Color
- Gray RAL 7022)
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Device Composition
- fixing elements, 4 corner cover, 1 front panel, 1 rear panel, 4 corner
- Carbon Footprint Of The Distribution Phase [A4]
- 1.308988339, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 1.507791153, 2 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 0 kg CO2 eq., 0
- Local Publishable Date
- 2026-04-15
- Stocking Flag
- Y
- Service Catalog Item
- Finished good
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- No
- Tier Id
- 2
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Energy Efficiency Optimized
- False
- Mounting Support
- plinth side panels
- Product Availability
- Stock - Normally stocked in distribution facility
- Range
- PanelSeT
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Pop Directive
- No POPs
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
- Functional-unit Unit
- unit
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; FR
- Height Nominal
- 100 mm
- Width Nominal
- nominal: 1200 mm
- Nbr. Of Units In Pkg.
- 1
- Silicone-free
- No
- Warranty (In Months)
- 18
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Enclosure Nominal Dimensions-, -
Carbon Footprint Of The End-of-life Phase [C1 To C4]16 kg CO2 eq., 15.98576371
Carbon Footprint Of The Manufacturing Phase [A1 To A3]30 kg CO2 eq., 29.54680556
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
Weee ScopeOut
Eoli Availability DisplayNo need of specific recycling operations
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1912
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier2
Function OptionStandard
Device Applicationmulti-purpose
Fixing Modeby fixing element - on structure
Permanent Permissible Load1300 kg
Product Or Component Typeplinth front
ReturnabilityYes
Surface Finishepoxy-polyester powder
Total Lifecycle Carbon Footprint48 kg CO2 eq.
Pep CodeENVPEP1109023EN
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Recyclability Potential, In %98
Height Useful100 mm
Accessory / Separate Part Categoryenclosure accessory
Package Weight(Lbs)6.500 kg
Take-backNo
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Silicon Free
- No
- Environmental Disclosure
- ENVPEP1109023EN
- Ip Degree Of Protection
- IP20 complete plinth)
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP1109023EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint48.34934876
Eu Rohs DirectiveCompliant By Exemption
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-03-30
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- plinth front
ETIM
- ETIM 8
- EC000721
ETIM 9EC000721
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
