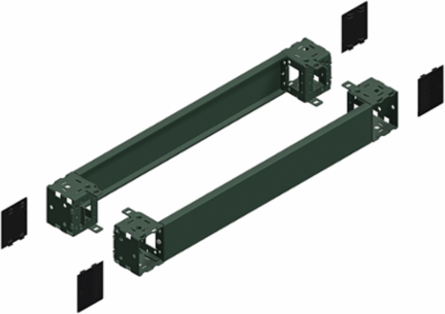

Schneider Electric NSYSPF8100 Plinth for Electrical Enclosure 800mm Wide, 100mm High, IP30, IK10

MPN: NSYSPF8100
PPN: SCH-NSYSPF8100
UNSPSC: 39121321

If you can't find the product or are unsure which one you need, please use the Product Selector tool below

$112.77

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Front plinth for Spacial CRN, S3D, SF, SM, SD. 99 x 800 mm. Multi-purpose, electronic, compartimentalised application. Plinth side panels mounting support. Permanent permissible load 1300kg. Fixing mode by fixing element. Epoxy-polyester powder surface finish. Grey RAL 7022. IP30 complete plinth, IK10.

Features

The front and rear of the plinth consists of 4 corners with 2 or 4 panels.
Material: Folded sheet steel, corner with a thickness of 25/10e mm
Finish: Epoxy polyester paint
Color: RAL 7022 grey
Ingress protection rating: IP30 according to IEC 60529
Mechanical protection rating: IK10 according to IEC 62262

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	India, United States
Weight	5201 g

Height	3.94 in

Physical Attributes

Color	Gray RAL 7022)

Important Information Attributes

Persona Type Ids	LC, OM, OM8, PB, SI
Market Segmentation Id	COMMERCIAL, INDUSTRIAL
Device Application	electronic application, compartmentalised application, multi-purpose
Enclosure Nominal Dimensions	-, -
Carbon Footprint Of The End Of Life Phase C1 To C4	12 kg CO2 eq., 12.22675839
Carbon Footprint Of The Manufacturing Phase A1 To A3	23 kg CO2 eq., 22.59896114
Local Data Status	Publishable
Return Indicator	Y
Weee Scope	Out
Eoli Availability Display	No need of specific recycling operations
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1912
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Tier	2
Function Option	Standard
Energy Efficiency Optimized	False
Mounting Support	plinth side panels
Product Availability	Stock - Normally stocked in distribution facility
Range	PanelSeT
Software Version	v5.9.4
Sustainable Packaging	No
Database Version	2022-01
Height Nominal	100 mm
Width Nominal	nominal: 800 mm
Nbr. Of Units In Pkg.	1
Silicone Free	No
Functional Unit Description	Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure with dimensions H2000mm x W800mm x D600mm, while protecting against mechanical impacts (IK10-IEC 62262) and the penetration of solid objects and liquids (IP55-IEC 60529) as per the standard IEC 62208.
Functional Unit Unit	unit
Recyclability Potential In %	98

Persona Type Names	Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market Segmentation	Commercial, Industrial
Device Composition	fixing elements cover1 front panel, 1 rear panel, 4 corner
Carbon Footprint Of The Distribution Phase A4	1.001183581, 1 kg CO2 eq.
Carbon Footprint Of The Installation Phase A5	1.153238498, 1 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B6	kg CO2 eq., 0
Local Publishable Date	2026-04-15
Service Catalog Item	Finished good
Scope Perimeter	At least in Europe
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	7
Without Single Use Plastic	No
Tier Id	2
Function Option Id	STANDARD
Product Kit Identifier	N
Fixing Mode	by fixing element - on structure
Permanent Permissible Load	1300 kg
Product Or Component Type	front and rear plinth
Returnability	Yes
Surface Finish	epoxy-polyester powder
Total Lifecycle Carbon Footprint	37 kg CO2 eq.
Data Source	extrapolated product
Height Useful	100 mm
Accessory / Separate Part Category	enclosure accessory
Customs Code	7326908688
Warranty In Months	18
Functional Unit Quantity	1
Reference Lifetime In Y	20

Environment Attributes Main

Take Back	No
China Rohs Regulation	X
Silicon Free	No
Environmental Disclosure	ENVPEP1109023EN
Ip Degree Of Protection	IP20 complete plinth)
Packaging Without Single Use Plastic	No
Pep Code	ENVPEP1109023EN
Pcr Version	PEP-PCR-ed4-2021 09 06
Type Of Verification For The Pep	Independent internal review

Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Carbon Footprint	36.98014161
Eu Rohs Directive	Compliant By Exemption
Packaging Made With Recycled Cardboard	No
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Verification Date	2023-03-30
Psr Version	PSR-0005-ed2-2016 03 29
