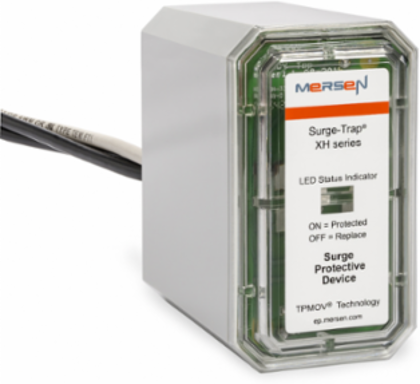

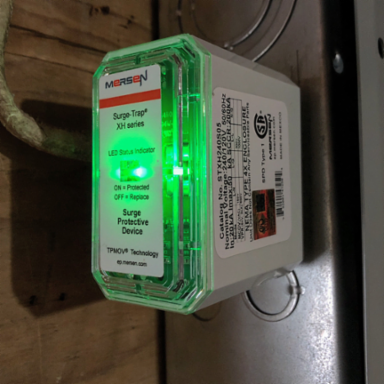

Mersen STXH240S05 Surge-Trap® Type 1 240/120V SPD with 50 kA Rating and NEMA 4X Enclosure
- MPN: STXH240S05
- UPC: 782001472504
- PPN: FER-STXH240S05
CAD
$287.79
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Surge-Trap® STXH is listed UL Type 1 and fully compliant with UL1449 5th Edition, suitable for any 120/240VAC split phase application. Equipped with TPMOV® technology, stands out as the safest option in its class. Compact design, combined with superior performance and reliability, makes it particularly suited for HVAC systems and direct attachment to air conditioning disconnect switches.
Specifications
Key Specifications
- Frequency (Hz)
- 50/60 Hz
- UL SPD Type
- Type 1
- AC or DC
- AC
- Protection Modes
- L-N, L-G
- Indication System
- Yes
- Enclosure NEMA Type
- 4X Non-Metallic
- Installation Mounting
- Panel Mount
- MCOV L-N
- 150 V
- VPR L-N
- 600 V
- Length
- 3.2 in
- Weight
- 0.8 lb
ROHS CompliantYes
FormatSTXH
Nominal Discharge Current (In) (8/20)20 kA
System ConfigurationSplit Phase
Indication System TypeLED
Housing MaterialPolycarbonate
MCOV L-G300 V
VPR L-G1000 V
Width1.85 in
Height3.22 in
