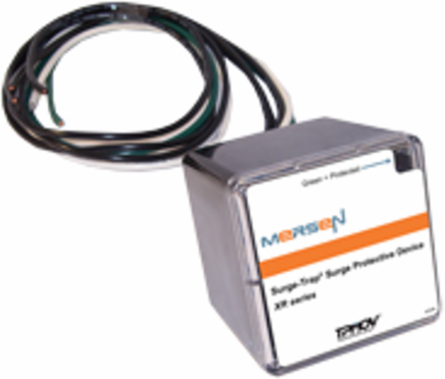

Mersen STXR600V3D50 Surge-Trap Type 1 SPD, 20kA Nominal Discharge, NEMA 4X Enclosure

Surge-Trap Type 1 SPD, 20kA Nominal Discharge, NEMA 4X Enclosure
  • MPN: STXR600V3D50
  • UPC: 782001428754
  • PPN: FER-STXR600V3D50

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$942.91/ EA

Description

The Surge-Trap Type 1 XR Series meets requirements for UL1449 Third Edition and is ideal for the replacement of obsolete surge arrestors. The XR Series SPD feature TPMOV technology inside making them the safest product available. With a small, compact design and line or load installation flexibility the XR series is the perfect fi from service entrance all the way down to a specific control panel.

Features

  • UL 1449 Third Edition Listed,Type 1 SPD Can be installed line-side or load-side of main disconnect 20kA Nominal discharge current 200kA SCCR (most models) UL 96A Lightning Protection Master Label compliant (@20kA, In) Large block 50kA TPMOV, Pre-wired with 3' (1m) of #10 AWG conductor Standard NEMA 4X polycarbonate enclosure Tri-mount installation kit Included (pipe nipple, bracket, DIN-rail) Two-year warranty

Specifications

Product Details

Operating Temp Range (Min/Max)
-40 to +85 °C
Applications
AC Distribution Power supplies Drive Protection Fire Alarms Control Panels Telecommunications Residential IT / Data centers
Lead Free
Consult Technical Services
UL Certification
E210793 VZCA.E210793
SCCR
100 kA 200 kA
Nominal discharge current
10 kA 20 kA
Enclosure
NEMA 4X
CE conformityConsult Technical Services
StandardsUL 1449 Third Edition File VZCA.E210793 IEC 61643 CE ANSI/IEEE C62.41 Burn-In tested prior to shipment UL 96A lighting protection master label (Most Models)
ROHS CompliantConsult Technical Services
Number of Poles1 2 3
MountingDin Rail / Panel / Bracket
Body MaterialPolycarbonate
AC Voltage600 VAC
