Dragon Tooth 22L006 Splices

MPN: 22L006
UPC: 078621087809
PPN: T-B-22L006

Spec sheet

In Stock

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$0.64/ EA

Qty:

Loading add to cart quantity...

Description

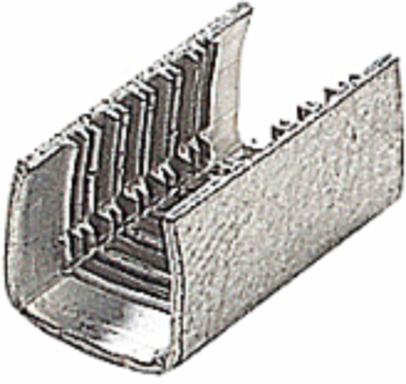

Insulation Piercing Magnet Wire Splice, Length .44 Inches, Width .25 Inches, Height .22 Inches, Wire Range #16 AWG - #12 AWG 2,580 Circular Mil Area - 12,330 Circular Mil Area, Copper Alloy, Tin Plated

Features

Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.

Specifications

European Specifications (ETIM)

ETIM: EC001059 Crimp splices for copper conductor

Model: Standard version

Suitable for solid cores: N

Suitable for fine strand conductors: N

Suitable for round conductors: Y

Material: Copper

Insulation: None

Type of connection: End connector

AWG-range16-12

Sleeve formShort

Useful for stranded conductorsN

Suitable for insulated varnishY

Suitable for flat conductorsY

Surface protectionTinned

Voltage rowUp to 600 V

Oil stop/centre barN

North American Specifications (UNSPSC)

UNSPSC: 39121449 Wire or cable compression splice

Brand Name: Dragon Tooth

Special Features: Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.

Standard: UL E9809

Finish: Tin Plated

IGCC4669 Wire or cable compression splice

TypeSplices

ApplicationFor aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.

MaterialCopper

Packaging

Inner Quantity: 1000

Outer Quantity: 5000

Weight Uom: 2.5 lbs. per 1000

Inner Dimensions (inches)4x4x3

Outer Dimensions (inches)8x9.5x8
