Dragon Tooth

Dragon Tooth 220004 Splices

Splices
  • MPN: 220004
  • UPC: 786210871080
  • PPN: T-B-220004

Spec sheet

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$0.45/ EA

Description

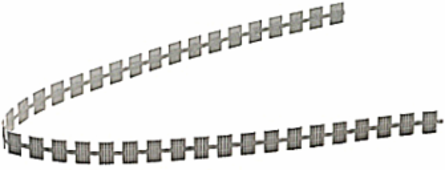

Insulation Piercing Magnet Wire Splice, Length .17 Inches, Width .11 Inches, Height .08 Inches, Wire Range #32 AWG - #24 AWG 468 Circular Mil Area - 1,724 Circular Mil Area, Copper Alloy, Tin Plated

Features

  • Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
  • For aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.

Specifications

North American Specifications (UNSPSC)

UNSPSC
39121449 Wire or cable compression splice
Brand Name
Dragon Tooth
Special Features
Designed to penetrate magnet wire insulation during application, eliminating the need for stripping, brazing, welding or other methods of joining magnet wire.
Standard
UL E9809
Finish
Tin Plated
IGCC4669 Wire or cable compression splice
TypeSplices
ApplicationFor aluminum to copper, aluminum to aluminum or copper to copper magnet wire connections.
MaterialCopper

Packaging

Inner Quantity
8400
Outer Quantity
42000
Weight Uom
0.06 lbs. per 100
Inner Dimensions (inches)7.6x.8x8
Outer Dimensions (inches)8.3x8x6.3

European Specifications (ETIM)

ETIM
EC001059 Crimp splices for copper conductor
Model
Standard version
Suitable for solid cores
N
Suitable for fine strand conductors
N
Suitable for round conductors
Y
Material
Copper
Insulation
None
Type of connection
End connector
AWG-range32-24
Sleeve formShort
Useful for stranded conductorsN
Suitable for insulated varnishY
Suitable for flat conductorsN
Surface protectionTinned
Voltage rowUp to 600 V
Oil stop/centre barN
