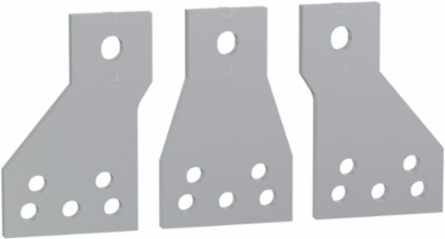

Schneider Electric LA9G3614 Contactor accessory, terminal extension, spreader, TeSys Giga, LC1G630-800, 3 pole, large connection
- MPN: LA9G3614
- PPN: SCH-LA9G3614
CAD
$298.91
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
These accessories are straight terminal extension for TeSys Giga 630-800 contactor, 80mm wide connection. It is used to 3 Poles electrical circuit. They are screwed to the contactor terminals to increase the pitch for 80mm wide poles. The rated current is up to 800 A. It can cover -25°C to 60°C operation ambient air temperature, No derating up to 3000m altitude.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- China, France, United Kingdom
Depth58 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Traceability
- No
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- End Of Life Doc Ref
- ENVEOLI2105013
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 2121
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Short Name
- LA9G
- Product Availability
- Stock - Normally stocked in distribution facility
- Quantity Per Set
- set of 3
- Range Of Product
- TeSys G
- Sustainable Packaging
- Yes
- Pep Code
- ENVPEP2105013EN
- Width Nominal
- 115 mm
- Accessory / Separate Part Category
- connection accessories
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536908585
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Local Publishable Date2025-07-09
Stocking FlagN
ServiceabilityNo
Field Service DivisionPPIBS
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Connection Pitch80 mm
Number Of Poles3P
Product Or Component Typeterminal extension
RangeTeSys
ReturnabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Nominal130 mm
Certificate AgencycULus
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)1.975 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Circularity Profile
- ENVEOLI2105013
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 9842.52 ft (3000 m) without derating5000 m with derating factor
- Packaging Without Single Use Plastic
- No
- Pep Code
- ENVPEP2105013EN
Product CompatibilityLC1G630...800, LC1G630...800
Halogene PerformanceHalogen free plastic parts product
Mercury FreeYes
Environmental DisclosureENVPEP2105013EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
General Attributes
- Product Or Component Type
- terminal extension
Range Of ProductTeSys G
ETIM
- ETIM 8
- EC002498
ETIM 9EC002498
