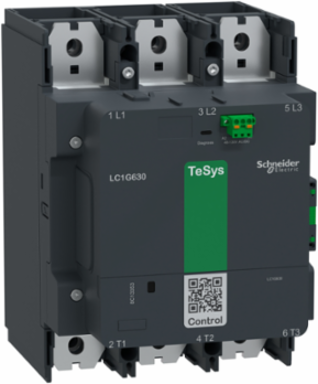

Schneider Electric LC1G630KUEN Contactor, high power, TeSys Giga, standard version, AC-3, <= 440V, 630A, 3 pole/NO, 100-250VAC/DC coil
- MPN: LC1G630KUEN
- PPN: SCH-LC1G630KUEN
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys Giga high power contactor, 3 poles (3 NO) for category AC-3 applications up to 630A 400kW@440V. It provides a 100-250V AC/DC wide band low consumption electronic coil and embedded highly reliability 1NO+1NC auxiliary contact block (17V 1mA). Designed for demanding applications with maximum operating rates up to 600 cycles per hour and environments until 60°C. It procures high reliability and durability with 5 Mcycles mechanical durability. Local Contact Wear Diagnosis (CWD) as standard function, continuous monitoring with healthy and alarm indicators. It is possibility to replace switching module (main contacts), enhancement contactor life. Contactor can be fixed in all quadrants, maintenance without removing cables/busbars, and OLR could be directly mounted below contactor. To be used with power connection by bolted connection and control connections by spring terminals, accessible from front for easy and quick replacement. It provides IP2x protection in Front face with shrouds conforming to IEC 60529 and VDE 0106. It can cover -25°C to 60°C operation ambient air temperature and directly mounted on plate, No derating up to 3000m altitude. The dimension is 324mm x 210mm x 248mm (H x W x D), compact size enables panel space savings. Multi standards certified (CE,CB,CCC,cULus,EAC,KC,RCM,Marine). Unique QR code provides quick access to complete product data.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France
Depth266 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Maximum Operating Rate
- 600 cyc/h AC-3, 600 cyc/h AC-3e300 cyc/h AC-1150 cyc/h AC-4
- Irms Rated Making Capacity
- 7220 A at 440 V
- Maximum Motor Phase Current
- 630 A
Control Circuit Voltage Limitsoperational: 0.8 Uc Min...1.1 Uc Max (at <60 °C)drop-out: 0.1 Uc Max...0.45 Uc Min (at <60 °C)
Maximum Horse Power Rating250 hp at 200/208 V 60 Hz300 hp at 230/240 V 60 Hz600 hp at 460/480 V 60 Hz700 hp at 575/600 V 60 Hz
Rated Breaking Capacity5550 A at 440 V
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, PB
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Associated Fuse Rating
- 630 A aM at <= 440 V for motor500 A aM at <= 690 V for motor1250 A gG at <= 690 V, 1000 A UL Type L at <= 600 V
- Electrical Durability
- 300 cycles AC-1 400 V500 cycles AC-3 400 V, 500 cycles AC-3e 400 V150 cycles AC-4 400 V
- Motor Power Kw
- 335 kW at 400 V AC 50/60 Hz (AC-3), 375 kW at 415 V AC 50/60 Hz (AC-3)400 kW at 500 V AC 50/60 Hz (AC-3), 500 kW at 690 V AC 50/60 Hz (AC-3), 450 kW at 1000 V AC 50/60 Hz (AC-3)315 kW at 400 V AC 50/60 Hz (AC-4), 335 kW at 415 V AC 50/60 Hz (AC-4), 355 kW at 440 V AC 50/60 Hz (AC-4), 375 kW at 500 V AC 50/60 Hz (AC-4), 450 kW at 690 V AC 50/60 Hz (AC-4), 355 kW at 1000 V AC 50/60 Hz (AC-4)180 kW at 230 V AC 50/60 Hz (AC-3e)315 kW at 400 V AC 50/60 Hz (AC-3e)335 kW at 415 V AC 50/60 Hz (AC-3e)355 kW at 440 V AC 50/60 Hz (AC-3e)375 kW at 500 V AC 50/60 Hz (AC-3e)500 kW at 690 V AC 50/60 Hz (AC-3e)450 kW at 1000 V AC 50/60 Hz (AC-3e)200 kW at 230 V AC 50/60 Hz (AC-3), 400 kW at 440 V AC 50/60 Hz (AC-3), 180 kW at 230 V AC 50/60 Hz (AC-4)
- Utilisation Category
- AC-1, AC-3, AC-3e, AC-4, AC-5a, AC-5b, AC-6a, AC-6b, AC-8a, AC-8b, DC-1, DC-3, DC-5
- [Uc] Control Circuit Voltage
- 100...250 V, 100...250 V AC 50/60 Hz, 100...250 V DC
- Connections - Terminals
- control circuit: push-in 0.75-2.5 mm² - cable stiffness: flexible with cable end, power circuit: bar 2 - busbar cross section: 52 x 20 mm, power circuit: lugs-ring terminals 1 185-185 mm², power circuit: bolted connection, control circuit: push-in 1 0.2-2.5 mm² - cable stiffness: solid stranded without cable end, control circuit: push-in 1 0.25-2.5 mm² - cable stiffness: flexible with cable end, control circuit: push-in 2 0.5-1.0 mm² with cable end, control circuit: push-in 0.75-2.5 mm² - cable stiffness: solid stranded without cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 21.437451699589865, 21 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 135 kg CO2 eq., 134.64180388742102
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Service Catalog Item
- Finished good
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Average Impedance
- 0.000065 Ohm
- Compatibility Code
- LC1G
- Device Short Name
- LC1G
- Inrush Power In W
- 680 W
- Mounting Support
- plate
- Operating Time
- 40...70 ms closing15...50 ms opening
- Pole Contact Composition
- 3 NO
- Product Or Component Type
- contactor
- Range
- TeSys
- Returnability
- Yes
- Software Version
- v6.2.4
- Tightening Torque
- 58 N.m
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Inf Motor Phase Current
- 630 A
- Pep Code
- ENVPEP2105013EN
- Pep Verification Date
- 2026-03-19
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; China, CN
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; China, CN
- Recyclability Potential In %
- 55
- Width Nominal
- 211 mm
- [Ie] Rated Operational Current
- 1050 A (at <40 °C) at <= 1000 V AC-1630 A (at <60 °C) at <= 440 V AC-3
- [Ui] Rated Insulation Voltage
- 1000 V
- Hold-in Power Consumption In Va
- 15.0-15.0 VA
- Rated Thermal Current (Ith)
- 1050 A
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8536490065
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder
Market SegmentationCommercial, Industrial
Contactor Applicationpower switching, motor control
Mechanical Robustnessvibrations 5-300 Hz 2 gn contactor openvibrations 5-300 Hz 4 gn contactor closed, shocks 10 gn 11 ms contactor open, shocks 15 gn 11 ms contactor closed
Power Dissipation Per Pole70 W AC-1 - Ith 1050 A, 26 W AC-3 - Ith 630 A
Certificate AgencyCB Scheme, CCC, cULus, EAC, CE, UKCA, EU-RO-MR by DNV-GL
[Ue] Rated Operational Voltage<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC<= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 1000 V AC 50/60 Hz, <= 460 V DC, <= 460 V DC
Carbon Footprint Of The Distribution Phase [A4]24.403387133119395, 24 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0.2 kg CO2 eq., 0.20209769822506285
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]1 845 kg CO2 eq., 1845.407776594411
Local Publishable Date2026-06-27
Stocking FlagN
Device TypeLV equipment - LV contactor
TraceabilityYes
Average Life Duration20 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2105013
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date2121
China Rohs In ScopeNo
Without Single Use PlasticNo
Tier Id1
Function Option IdSTANDARD
Product Kit IdentifierN
Coil Technologybuilt-in bidirectional peak limiting
Connection Pitch70 mm
Inrush Power In Va800-800 VA
Mechanical Durability5 Mcycles
Number Of Poles3P
Overvoltage CategoryIII
Product AvailabilityStock - Normally stocked in distribution facility
Protective TreatmentTH
Range Of ProductTeSys Giga
Safety Reliability LevelB10d = 100000 cycles contactor with nominal load EN/ISO 13849-1B10d = 1800000 cycles contactor with mechanical load EN/ISO 13849-1
Sustainable PackagingYes
Total Lifecycle Carbon Footprint2 026 kg CO2 eq.
Control Circuit Voltage100...250 V
Rated Thermal Current Hv1050 A
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionEstablish and cut off the supply of a downstream installation from an electrical and/or mechanical control characterised by the composition of the poles or type of contacts X, a rated voltage of Ue, a rated current Ie, a control circuit voltage Uc, with Np poles, and if applicable the specific specifications, in the Household/Commercial or Industrial application areas, according to the appropriate use scenario, and during the reference service life of the product of 20 years
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh2233.8
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal284 mm
[Icw] Rated Short-time Withstand Current5.05 kA - 10 s4.4 kA - 30 s3.4 kA - 1 min2.2 kA - 3 min1.6 kA - 10 min
[Ith] Conventional Free Air Thermal Current1050 A (at 40 °C)
[Uimp] Rated Impulse Withstand Voltage8 kV
Hold-in Power Consumption In W9.5-9.5 W
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)16.422 kg
Warranty (In Months)18
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Ambient Air Temperature For Storage
- -60-80 °C, -60-80 °C
- Permissible Ambient Air Temperature Around The Device
- -40-70 °C at Uc, -40-70 °C at Uc-40-70 °C at Uc, -40-70 °C at Uc
- Halogene Performance
- Halogen free plastic parts product
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI2105013
- Eu Rohs Directive
- Compliant By Exemption
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2026-03-19
- Psr Version
- PSR-0005-ed3-2023 06 06
Ambient Air Temperature For Operation-25-60 °C, -25-60 °C
Ip Degree Of ProtectionIP2X front face with shrouds IEC 60529, IP2X front face with shrouds VDE 0106
Take BackNo
Recycled Metal Content At Cr Level0 %
Carbon Footprint2026.0925170127664
Environmental DisclosureENVPEP2105013EN
Halogen Content PerformanceHalogen free plastic parts product
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2105013EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- contactor
Range Of ProductTeSys Giga
ETIM
- ETIM 8
- EC000066
ETIM 9EC000066
