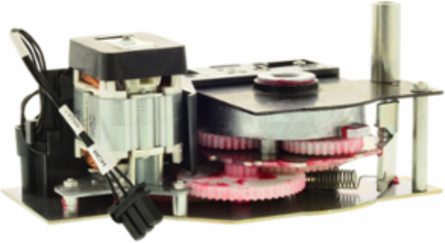

Square D S48526 MasterPact NW Circuit Breaker Accessory, Spring Charging Motor, 100-130V AC
- MPN: S48526
- UPC: 785901986126
- PPN: SCH-S48526
CAD
$2199.66
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This spring charging motor accessory from Schneider Electric is designed specifically for the MasterPact NW circuit breaker, enhancing its operation and efficiency. Operating within the voltage range of 100-130V AC, this dependable component ensures that the circuit breaker is charged reliably, contributing to the overall safety and effectiveness of electrical management systems. With its robust engineering, this accessory stands as a vital addition for those looking to optimize the functionality of their circuit protection solutions.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- France, Mexico, United States
Complementary Attributes
- Rated Voltage
- 100-130 V AC
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.243225639, 0.2 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.371965575, 0.4 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 0.1 kg CO2 eq., 0.084016
- Local Publishable Date
- 2026-05-14
- Stocking Flag
- Y
- Serviceability
- No
- Field Service Division
- PPIBS
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Rohs Eur In Scope
- Yes
- Rohs Eur Conformity Date
- 1943
- China Rohs In Scope
- No
- Without Single Use Plastic
- No
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- automatic spring charging
- Product Or Component Type
- motor
- Returnability
- Yes
- Sustainable Packaging
- No
- Pep Code
- ENVPEP2307034EN
- Pep Verification Date
- 2023-12-03
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Production mix; Low voltage; UE-27
- Accessory / Separate Part Category
- control accessory
- Package Weight(Lbs)
- 2.540 kg
- Warranty (In Months)
- 18
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 2.5515
- Customs Code
- 8538908120
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]4 kg CO2 eq., 4.064554414
Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 9.120880761
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
TraceabilityNo
Weee ScopeIn
Scope PerimeterOutside of Europe
End Of Life Doc RefENVEOLI2307034EN
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Circuit Breaker TypeY-frame
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductMasterPact NW
Software Versionv5.9.4
Total Lifecycle Carbon Footprint14 kg CO2 eq.
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionThe electric Motor mechanism is equipped as standard with a limit switch contact CH that signals the “charged” position of the mechanism (springs charged), during 10 years
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; FR
Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; UE-27
Recyclability Potential In %74
Nbr. Of Units In Pkg.1
Take-backNo
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]2.1405
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]2.1405
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Recycled Metal Content At Cr Level
- 0 %
- Carbon Footprint
- 13.88464239
- Environmental Disclosure
- ENVPEP2307034EN
- Packaging Made With Recycled Cardboard
- Yes
- Pep Code
- ENVPEP2307034EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent external review
Take BackNo
Mercury FreeYes
Circularity ProfileENVEOLI2307034EN
Eu Rohs DirectiveCompliant
Packaging Without Single Use PlasticNo
Pep Verification Date2023-12-03
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- motor
Range Of ProductMasterPact NW
