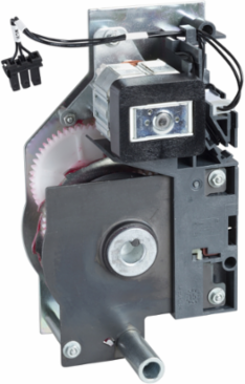

Schneider Electric LV847897SP Electric motor MCH, MasterPact MTZ2/MTZ3, remote operation, 440/480VAC 50/60Hz, spare part
- MPN: LV847897SP
- PPN: SCH-LV847897SP
CAD
$2033.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Electric motor MCH, MasterPact MTZ2/MTZ3, remote operation, 440/480VAC 50/60Hz, spare part
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
Complementary Attributes
| Maximum Operating Frequency | <= 3 cycles per minute, <= 3 cycles per minute |
|---|---|
| Maximum Power Consumption In Va | 180 VA |
| Maximum Charging Time | 4 s |
|---|---|
| Rated Voltage | limit switch contact 240 V 10 A |
Important Information Attributes
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.25970221404775123, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.3971632426429761, 0.4 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0.1 kg CO2 eq., 0.084016 |
| Local Publishable Date | 2024-01-12 |
| Stocking Flag | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI2307034EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1943 |
| China Rohs In Scope | No |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Persona Type Names | Panel Builder |
| Tier | 3 |
| Function Option | Standard |
| Control Type | standard |
| Energy Efficiency Optimized | False |
| Overcurrent Protection | 2...3 x In 0.1 s |
| Product Or Component Type | motor mechanism |
| Range | MasterPact |
| Software Version | v5.9.4 |
| Threshold Tripping Voltage | 0.85...1.1 Un |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | The electric Motor mechanism is equipped as standard with a limit switch contact CH that signals the “charged” position of the mechanism (springs charged), during 10 years |
| Functional-unit Unit | Unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Production mix; Low voltage; FR |
| Energy Model - Use [B6] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Recyclability Potential In % | 73 |
| Halogen-free Status | Halogen free plastic parts product |
| Package Weight(Lbs) | 1.986 kg |
| Warranty (In Months) | 18 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 2.5515 |
| Market Segmentation | Commercial, Industrial |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 4 kg CO2 eq., 4.339895197112715 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 10 kg CO2 eq., 9.738746876735147 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Stock Policy | 2 |
| Traceability | No |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | Yes |
| Persona Type Ids | PB |
| Tier Id | 3 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Device Application | control |
| Offer Type | spare part |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Provided Equipment | 1 instruction sheet |
| Returnability | No |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 15 kg CO2 eq. |
| Pep Code | ENVPEP2307034EN |
| Pep Verification Date | 2023-12-03 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
| Energy Model - Installation [A5] | Electricity Mix; Production mix; Low voltage; UE-27 |
| Energy Model - End Of Life [C1-c4] | Electricity Mix; Production mix; Low voltage; UE-27 |
| [Uc] Control Circuit Voltage | 440...480 V AC 50/60 Hz |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 2.1405 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 2.1405 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Halogene Performance | Halogen free plastic parts product |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI2307034EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-12-03 |
| Psr Version | PSR-0005-ed2-2016 03 29 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 14.81952353053859 |
| Environmental Disclosure | ENVPEP2307034EN |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2307034EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | motor mechanism |
|---|
| Provided Equipment | 1 instruction sheet |
|---|
ETIM
| ETIM 8 | EC001030 |
|---|
| ETIM 9 | EC001030 |
|---|
