TeSys VLS Disconnect Switch, Additional Pole, 63A, Size 2, Door Mount
Schneider Electric

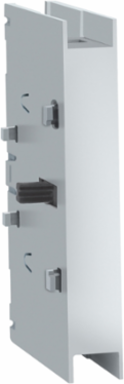

Schneider Electric VLS1P063D2S TeSys VLS Disconnect Switch, Additional Pole, 63A, Size 2, Door Mount

  • MPN: VLS1P063D2S
  • PPN: SCH-VLS1P063D2S

CAD

$76.92

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

These TeSys VLS disconnect switches are for integration into control systems in applications like material handling, HVAC, pumping, solar energy, mining and many more. This family of disconnect switches has switches ranging from 16A to 125A. The 16A, 25A, 32A, 40A and 63A disconnect switches are UL508 motor disconnect switches rated. The 30A, 63A, 80A, 100A and 125A disconnect switches are UL98 non fusible disconnect switch rated. This fourth pole adder can be added to a VLS3P063D2 door mount switch. This fourth pole adder for door mounted devices can be mounted on the right or left hand side. This simultaneous closing adder pole has one normally open contact The operational voltage of this fourth pole adder module is 600 Vac 50/60 Hz. This fourth pole adder module has a 60 A current rating. Fourth pole adder pole is 3.94 inches tall, 0.91 inches wide and 1.91 inches deep. It weighs 0.24 lbs. This fourth pole adder block is cULus Listed and meets IEC 60947-3 requirements.

Documentation & Downloads

Specifications

Key Specifications

Network Frequency
50/60 Hz
Range Compatibility
TeSys TeSys VARIO LS VLS3P
Performance Level
high performance
Contacts Type And Composition
1 NO
Contact Operation
simultaneous
Device Short Name
VLS1P
Network TypeAC
Product Or Component Typeadditional pole
RangeTeSys
Suitability For Isolationyes
Poles Description1P

Complementary

[Ue] Rated Operational Voltage
690 V AC 50/60 Hz
Intermittent Duty Class
class 120 - 60 %
Mounting Support
door
Net Weight
0.11 kg
Making Capacity
94.5 A 690 V AC-21A || 189 A 690 V AC-22A || 630 A 690 V AC-23A
Connections - Terminals
power circuit screw clamp terminals 50-50 mm² solid || power circuit screw clamp terminals 70-70 mm² flexible - without cable end
Electrical Durability
30000 cycles AC-21
Mechanical Durability
30000 cycles
Width
23 mm
Depth
48.6 mm
Rated Operational Power In W
30 kW 400 V AC-23A) || 45 kW 500 V AC-23A) || 45 kW 690 V AC-23A)
[Icw] Rated Short-Time Withstand Current
2500 A 690 V 1 s
Height100 mm
[Ith] Conventional Free Air Thermal Current63 A (at 55 °C)
[Ithe] Conventional Enclosed Thermal Current63 A
[Uimp] Rated Impulse Withstand Voltage8 kV
Mounting Locationright || left
[Icm] Rated Short-Circuit Making Capacity3550 A 690 V
[Ie] Rated Operational Current60 A Ue: 600 V UL98 || 63 A AC-21A Ue: 400 V || 63 A AC-21A Ue: 500 V || 63 A AC-21A Ue: 690 V || 63 A AC-22A Ue: 400 V || 63 A AC-22A Ue: 500 V || 63 A AC-22A Ue: 690 V || 63 A AC-23A Ue: 400 V || 63 A AC-23A Ue: 500 V || 47 A AC-23A Ue: 690 V
Colourgrey
Tightening Torquepower circuit 5-6 N.m screw clamp terminals
Breaking Capacity94.5 A 690 V AC-21A) || 189 A 690 V AC-22A) || 504 A 690 V AC-23A)
Rated Conditional Short-Circuit Current50 kA 400 V 63 A gG

Offer Sustainability

Rohs Exemption Information
Yes
Toxic Heavy Metal Free
Yes
Reach Free Of Svhc
Yes
Eu Rohs Directive
Compliant
Mercury FreeYes
Reach RegulationFree of Substances of Very High Concern above the threshold
China Rohs RegulationPro-active China RoHS declaration (out of China RoHS legal scope)

Environment

Product Certifications
cULus || GL
Standards
UL98 || CSA C22.2 No 4 || IEC 60947-3
Mechanical Robustness
vibrations 2...100 Hz Fc 0.7 g) IEC 60068-2-6 || shocks 11 ms Ea 15 gn) IEC 60068-2-27
Ambient Air Temperature For Operation-25-55 °C
Ip Degree Of ProtectionIP20 IEC 60529
Fire Resistance960 °C IEC 60695-2-11
