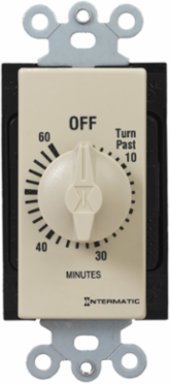

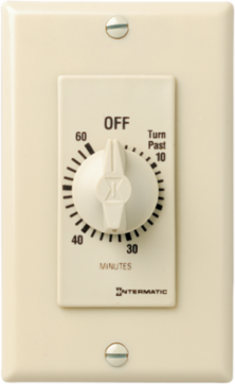

Intermatic FD60MC Ivory Decorator Countdown Timer, 60 Minute Max, 125-277 VAC
Intermatic FD60MC Ivory Decorator Countdown Timer, 60 Minute Max, 125-277 VAC
- MPN: FD60MC
- UPC: 078275005051
- PPN: INT-FD60MC
- UNSPSC: 39122208
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$51.49/ EA
Description
The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
Features
- 60-minute timer
- SPST (Single-Pole Single-Throw)
- No electricity required to operate
- Replaces any standard or decorator single- or multi-gang wall switch
- Automatically limits ON time for energy consuming loads
- Quick and easy installation
- Time-saving up front terminal connection with teeter-type terminals
- Breaks circuit at end of timing cycle
- Incandescent/fluorescent/CFL/LED compatible
- No neutral connection is required
Specifications
Specifications
- Input Voltage Rating Range(s)
- 125-277 VAC, 50/60 Hz
- Color
- Ivory
- Marketing Description
- The FD Series Decorator Countdown Timers are designed to replace any standard or decorator style wall switch, single- or multi-gang. These mechanical timers do not require electricity to operate. They automatically limit the ON times for fans, lighting, motors, heaters and other energy consuming loads. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
- Length
- NA NA
- Width
- 1.75 in
- Country of Origin
- Tunisia
Warranty Period1-Year limited
ApplicationsAir Movement & Ventilation;Indoor Lighting Control;Outdoor Lighting Control;Motor Control
Height4.125 in
WeightNA lbs
Depth1.25 in
