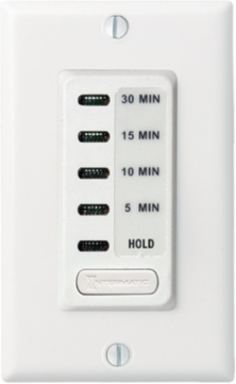

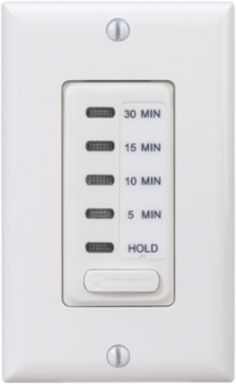

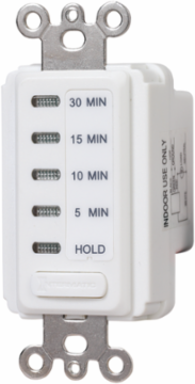

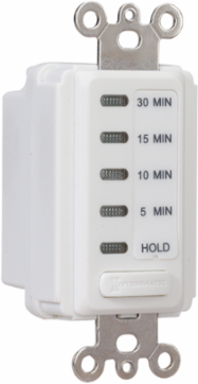

Intermatic EI200W Electronic Countdown Timer, 120 VAC, 60 Hz, Preset Times 5-30 Minute, White
- MPN: EI200W
- UPC: 078275095199
- PPN: INT-EI200W
- UNSPSC: 39122208
CAD
$66.23
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This timer requires no programming; preset countdown times are activated by pressing a single button. Silent operation makes this timer ideal for applications where the noise of mechanical countdown timers is of concern. *NOTE: Not for use with sunlamps, saunas, or loads that could cause personal injury if timed incorrectly.
Features
- No programming required.
- Provides silent operation in time ranges from five minutes to 30 minutes.
- Single-button time selection, with some models having a HOLD mode, for continuous ON operation.
- Replaces single-pole switches in a variety of applications.
- Incandescent/fluorescent/CFL/LED compatible.
- For use with decorator-style wall plate (not included).
- Requires neutral connection.
Documentation & Downloads
Specifications
Additional
- Voltage
- 120 VAC, 60 Hz
- Tungsten (Incandescent) Load
- 1000 W
- Electronic Ballast LED Load
- 4 A, 500 VA
- Operation Mode
- Countdown
- Hold Mode
- Included
- Height
- 4.125 in
- Depth
- 1.438 in
- Country of Origin
- China
- Operating Temperature Range
- 32 - 104 F (0 - 40 C)
Resistive Heater Load15 A, 1800 W
Ballast Fluorescent Load8 A, 1000 VA
Motor Load Rating1/4 HP
Time Presets5, 10, 15, 30 min
Neutral ConnectionRequired
Width1.688 in
ColorWhite
ApplicationsAir Movement & Ventilation; Indoor Lighting Control
CompliancecULus, RoHS Certified
