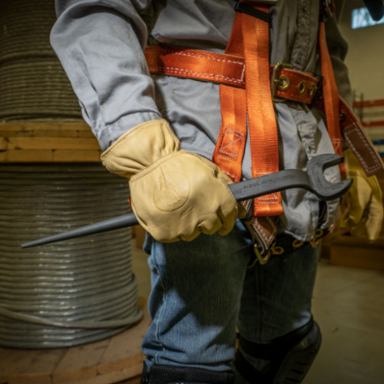

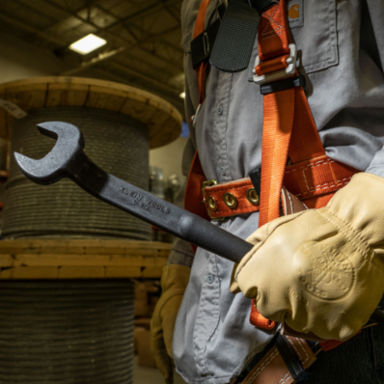

Klein Tools 3232 Spud Wrench 1-1/16 Inch Nominal Opening, 16.625 Inch Length, Alloy Steel
- MPN: 3232
- UPC: 092644680250
- PPN: KLT-3232
- UNSPSC: 27111714
CAD
$84.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Forged from select alloy steel, the Klein Tools 1-16-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. It's designed for use with 3/4-Inch bolts and utility nut types. The extra-duty head area gives maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes.
Features
- Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
- Extra heavy-duty head area gives maximum strength and durability
- Nominal Opening: 1-1/6-Inch (27.0 mm)
- Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification

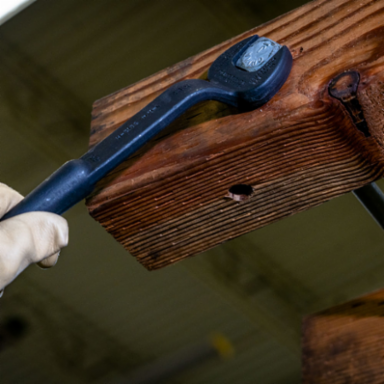

- Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
- Extra-large hub area works on larger diameter holes than other wrenches
- American Bridge design
- Made in USA
Documentation & Downloads
Specifications
Key Specifications
- Nominal Opening
- 1-1/16" (2.7 cm)
- Material
- Alloy Steel
- Type
- Spud Wrench
- Finish
- Black Oxide with a Rust Preventative
- Overall Height
- 2.5 cm (1 Inch)
- Overall Width
- 2.5 Inch (6.4 cm)
- Height
- 1.0000 in
- Depth
- 16.6250 in
Nut TypeUtility
Offset Angle60°
Taper Diameter1" to 1/4" (2.5 to 0.6 cm)
Heavy Nut Size5/8" (1.6 cm)
Head Width6.4 cm (2.5 Inch)
Overall Length16.625 Inch (42.2 cm)
Width2.5000 in
Weight2.0000 lbs
