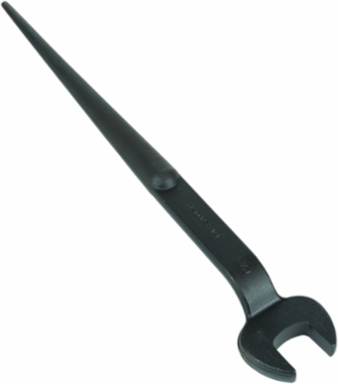

Klein Tools 3222 Spud Wrench, 1-1/8-Inch Nominal Opening for Regular Nut
Klein Tools 3222 Spud Wrench, 1-1/8-Inch Nominal Opening for Regular Nut
- MPN: 3222
- UPC: 092644680175
- PPN: KLT-3222
- UNSPSC: 27111714
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$85.60/ EA
Description
Forged from select alloy steel, Klein Tools' 1-1/8-Inch Nominal Opening Spud Wrench is designed to withstand high-leverage and heavy loads. For use with 3/4-Inch bolts and U.S. regular nut types, the extra-duty head area provides maximum strength and durability. Plus, the continuous taper of the handle makes it easy to line up bolt holes.
Features
- Forged from select alloy steel to withstand high-leverage and heavy loads
- Extra heavy-duty head area gives maximum strength and durability

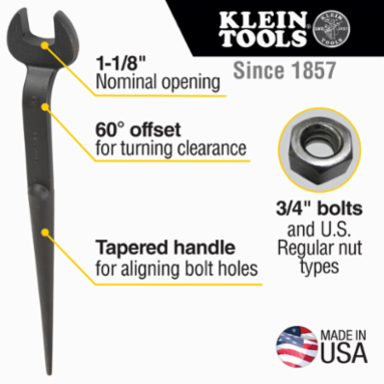

- Nominal Opening: 1-1/8-Inch (28.6 mm)

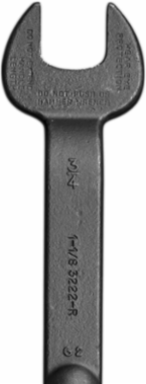

- Catalog number, bolt size and nominal opening size are stamped on every wrench for easy identification
- Continuous taper of handle makes lining-up bolt holes easy and works on a range of bolt and/or hole sizes without binding
- Extra-large hub area works on larger diameter holes better than other wrenches
- American Bridge design
- Forged in the USA from select US alloy steel to withstand high-leverage and heavy loads
- Made in USA
Specifications
Specifications
- Country of Origin
- United States
- Bolt Size
- 3/4" (1.9 cm)
- Size Name
- 3/4-Inch
- Overall Length
- 16.625" (42.2 cm)
- Overall Width
- 2.5" (6.4 cm)
- Taper Diameter
- 1" to 1/4" (2.5 to 0.6 cm)
- Overall Height
- 1" (2.54 cm)
- Nut Type
- U.S. Regular
- Finish
- Black Oxide with a Rust Preventative
- Square Nut Size
- 3/4" (1.9 cm)
- Width
- 2.5000 in
- Weight
- 2.0000 lbs
Configuration1 to 1/4-Inch Taper
Style Name1 to 1/4-Inch Taper
Head Width2.5" (6.4 cm)
Offset Angle60°
MaterialAlloy Steel
TypeSpud Wrench
Nominal Opening1-1/8" (2.9 cm)
ApplicationConnecting Steel Members
Regular Nut Size3/4" (1.9 cm)
Height1.0000 in
Depth16.6250 in
