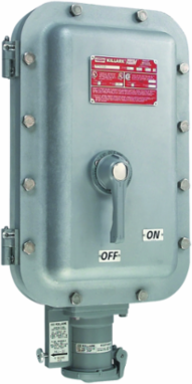

Killark VBQ6034SN60 60A Mechanically Interlocked Receptacle, NEMA 7, Hub Size 1-1/2"
- MPN: VBQ6034SN60
- UPC: 783936835273
- PPN: HBL-VBQ6034SN60
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Square D - FAL Series 60A Receptacle 60A Breaker 3W4P
Features
- Plug Interlock Mechanism for Dead-Front construction. Switch cannot be turned “ON” without fully inserted plug. Plug cannot be removed with switch in “ON” position
- Ground Fault Options Available
- Spacious wiring room that meets NEC wire bending requirements.
- Adjustable mounting lugs
- Quick Release Cover Bolts with Triple Leads for faster removal
- Electrostatically applied polyester/epoxy finish
- Breaker Handle has provisions for locking “ON” or “OFF” with up to three Padlocks
- Killark VersaMate® VBQ Series of Switched and Interlocked receptacles provides for a receptacle solution in hazardous location areas. NEMA 4X weather-ingress ratings allow for indoor and outdoor use, and copper-free aluminum construction with electrostatically applied polyester/epoxy coating ensure the ultimate in corrosive resistance. Plug Interlock Mechanism for Dead-Front construction, ensuring that the switch cannot be turned on without a fully inserted plug (plug cannot be removed with switch in “ON”position, preventing possibly damaging arcs and sparks). Integral circuit breaker allows for local circuit protection (Square D and Cutler-Hammer options available).
Specifications
Key Specifications
- ARRA Compliant
- Contact Manufacturer
- Hazardous Rating(s)
- Class I, Division 2, Groups B, C, D;Class I, Zone 2, Groups IIB+H2, IIA;Class II, Divisions 1 & 2, Groups F, G;Class III, Divisions 1 & 2
- Amperage Rating
- 60 A
- Number Of Poles
- 3
- Type
- Pin & Sleeve
- Description - Invoice
- RECEPT SQ'D 60A 10KAIC
- Harmonization Code
- 8537109999
- MSDS Flag
- No
- Hub Pattern
- Dead-End
- Receptacle Type
- Mechanically Interlocked
- Base Unit of Measure
- EA
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783936835273
Country of OriginUnited States
Hub Size1-1/2"
Nema Rating7 (C, D)
Number Of Wires4
Class CodeD35
Freight Class Code06316011
Image Actual Or RepresentativeA
Sub Class CodeD35D260
MaterialAluminum, Copper Free (less than 4/10 of 1%)
SeriesVBQ Series
BOX SIZE(in)
NAICS Code335931A104
