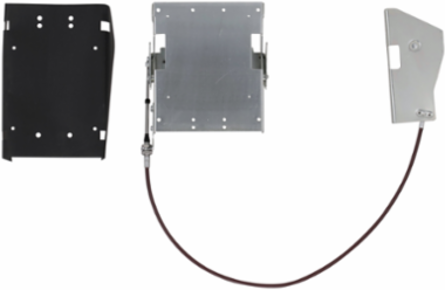

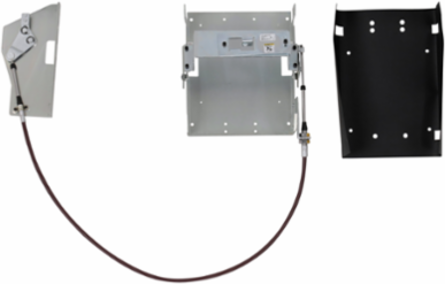

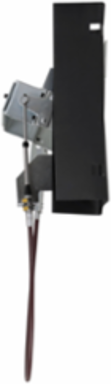

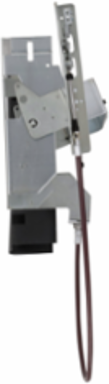

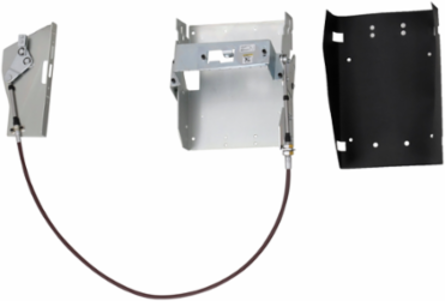

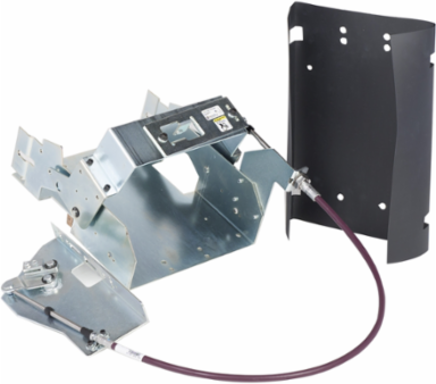

Square D 9422CMP50 Circuit breaker accessory, PowerPacT M/P, disconnect mechanism, cable operated, 50in cable

Circuit breaker accessory, PowerPacT M/P, disconnect mechanism, cable operated, 50in cable - https://media.province-electric.com/schneider_synd_rework/2024q1/images/medium/6e0a2de663af2f5e3f2e3fb6ffa58225497d5d36-medium.png

Circuit breaker accessory, PowerPacT M/P, disconnect mechanism, cable operated, 50in cable

Square D 9422CMP50 Circuit breaker accessory, PowerPacT M/P, disconnect mechanism, cable operated, 50in cable

MPN: 9422CMP50
UPC: 785901833253
PPN: SCH-9422CMP50

Spec sheet

Compare

Loading compare button...

Available to Order

Company Stock:

Lead times may vary. For an accurate estimate please contact us.

Loading dialog...

Looking to buy a large quantity?

To view product inventory

CAD$1615.78/ EA

Qty:

Loading add to cart quantity...

Description

Flexible cable mechanisms are specially designed for tall, deep enclosures where replacement flexibility is required. Mechanism will work with PowerPact M or PowePact P circuit breakers. This mechanism can be used with 800A 3 pole PowerPact M or 1200A 3 pole PowerPact P circuit breakers. This mechanism has a 50 inch long cable. 9422A1 operating handle is ordered separately. Cable operated mechanism is UL Component Recognized and CSA certified

Specifications

Offer Sustainability

China Rohs Regulation: Pro-active China RoHS declaration (out of China RoHS legal scope)

Mercury Free: Yes

Toxic Heavy Metal Free: Yes

Reach Regulation: Free of Substances of Very High Concern above the threshold

Rohs Exemption InformationYes

Pvc FreeYes

Eu Rohs DirectiveCompliant

Reach Free Of SvhcYes

Specifications

Range Of Product: 9422C

Product Or Component TypeSingle Cable Operating Mechanism

Complementary

Number Of Cables: 1

Provided Equipment: ordered separately

Cable Length60 in

Circuit Breaker NamePowerPact M or P 3

Contractual warranty

Warranty: 18 months
