Weidmuller 1155900000 SR-SMD 4.50/05/90LF 1.5AU BK RL
- MPN: 1155900000
- PPN: WDM-1155900000
CAD
$23.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

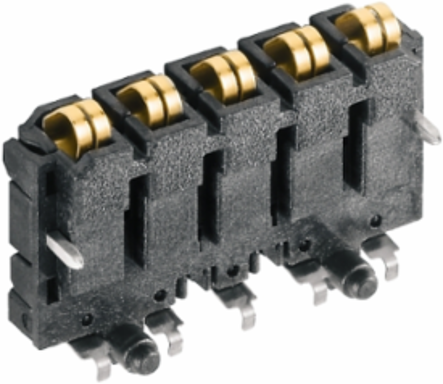

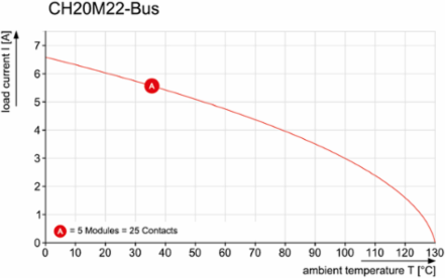

PCB plug-in connector, Bus-contact block for CH20M12-67, Solder flange, THT/THR solder connection, Number of poles: 5, 180°, Solder pin length (l): 1.5 mm, Gold-plated, black
Documentation & Downloads
Specifications
Approvals
| Approvals | cURus, EAC |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Length | 24 mm |
|---|---|
| Width | 16.3 mm |
| Height | 5.9 mm |
| Net weight | 3.427 g |
| Length (inches) | 0.945 inch |
|---|---|
| Width (inches) | 0.642 inch |
| Height (inches) | 0.232 inch |
Rated Data Acc. To Iec
| tested acc. to standard | IEC 60664-1, IEC 61984 |
|---|
Material Data
| Insulating material | LCP |
|---|---|
| Colour chart (similar) | RAL 9011 |
| Comparative Tracking Index (CTI) | ≥ 175 |
| Moisture Level (MSL) | 1 |
| Storage temperature, min. | -25 °C |
| Max. relative humidity during storage | 80 % |
| Operating temperature, max. | 100 °C |
| Temperature range, installation, max. | 100 °C |
| Colour | black |
|---|---|
| Insulating material group | IIIa |
| Insulation strength | ≥ 108 Ω |
| Contact surface | Gold-plated |
| Storage temperature, max. | 55 °C |
| Operating temperature, min. | -50 °C |
| Temperature range, installation, min. | -30 °C |
Classifications
| ETIM 6.0 | EC001031 |
|---|---|
| eClass 9.0 | 27-18-27-90 |
| eClass 10.0 | 27-18-27-92 |
| ETIM 7.0 | EC001031 |
|---|---|
| eClass 9.1 | 27-18-27-90 |
System Specifications
| Product family | OMNIMATE Housing - series CH20M |
|---|---|
| Mounting onto the PCB | THT/THR solder connection |
| Pitch in inches (P) | 0.197 inch |
| Number of poles | 5 |
| Solder pin length tolerance | +0.1 / -0.2 mm |
| L1 in inches | 0.787 inch |
| Plugging cycles | 25 |
| Type of connection | Board connection |
|---|---|
| Pitch in mm (P) | 5 mm |
| Outgoing elbow | 180° |
| Solder pin length (l) | 1.5 mm |
| L1 in mm | 20 mm |
| Pin series quantity | 1 |
Notes
| IPC conformity | Conformity: The products are developed, manufactured and delivered according international recognized standards and norms and comply with the assured properties in the data sheet resp. fulfill decorative properties in accordance with IPC-A-610 "Class 2". Further claims on the products can be evaluated on request. |
|---|
