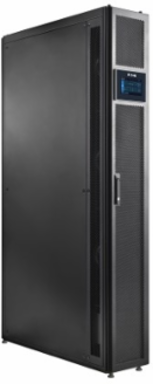

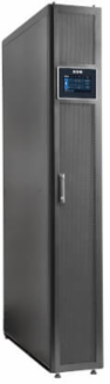

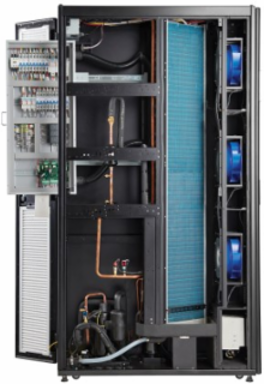

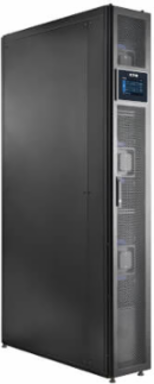

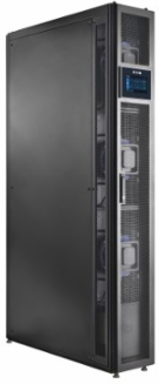

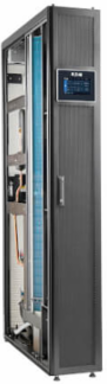

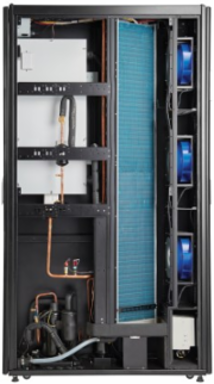

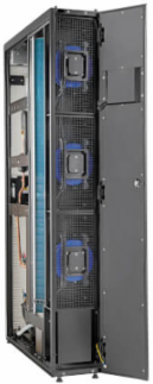

Tripp Lite SRCOOLDXRW12 In-Row Precision Cooling System, 12.8 kW (43,686 BTU/hr), 3PH, 208V, 42U, 300mm
- MPN: SRCOOLDXRW12
- UPC: 037332250674
- PPN: TRP-SRCOOLDXRW12
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

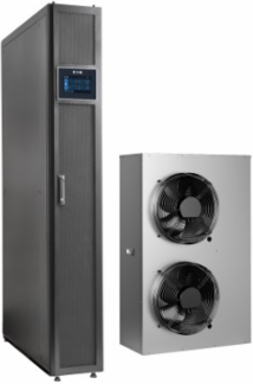

In-Row Precision Cooling System - 12.8 kW (43,686 BTU/hr), 3PH, 208V, 42U, 300mm
Features
- Indoor in-row air conditioning unit
- Outdoor condenser

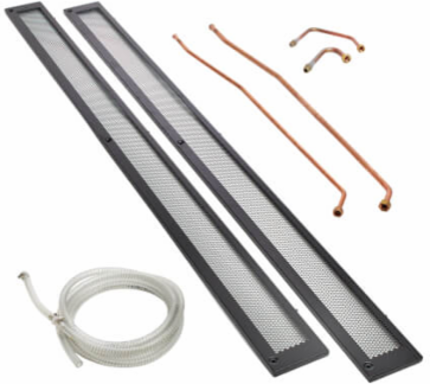

- Side discharge panels / adapters
- Hardware kits
- Owner's manual
Documentation & Downloads
Specifications
Material
- Color
- Black
- Refrigerant
- R410a (Environmentally friendly, Non ozone depleting)
- Compressor Type
- Rotary (Inverter Driven)
- Condensate Drain Pumps
- Max distance 150ft (45m), max lift 26.5ft (8m)
- Fan Controls
- Automatic
- Operation Mode
- Cooling, Standby, Off, Maintenance Mode
- Installation Modes
- Condenser above or slightly below In-Row; vertical condenser
- Temperature Unit Selections
- Deg. F; Deg. C (default is Deg. F)
Material of ConstructionAluminium, Steel
Refrigerant Amount12.1 lb. / 5.0 kg (Nominal)
Front Panel LEDs7-inch color touchscreen
SNMP CompatibilityYes, WEBCARDLXMINI card included
Applied Containment TypesClose/Open
Force ModesMaintenance Mode, Rotation Mode
Manual ModesService and factory setting menus for manual adjustment
Performance
- Cooling Capacity
- 43686 BTU/hr
- Maximum Input Amps
- 16
- Cooling Type
- Active
- Sound Level
- 68 dBA @ 1475 CFM @ 1 meter
- Storage Temperature Range
- -40° to 140°F (-40° to 60°C)
- Supply Air Temperature
- 18-27 deg. C (limited by heating load)
- Fans
- 0-2000 RPM x 3
Electrical Consumption4800 Watts
Airflow1,475 CFM
Audible Noise68 dBA
Operating Temperature-4° to 115°F (-16° to 46°C)
Operating Humidity Range5 to 80%
Operating Elevation0-13123 ft. (0-4000 m)
Reference
- Warranty Period
- 1-year limited warranty
Dimensions
- Input Connection Type
- 3-wire / 4-wire + Ground
- Input Frequency
- 60 Hz
- Unit Weight
- 397 lb
Voltage Compatibility208
Unit Dimensions78.700 x 11.800 x 43.300 in
Condensate Water Drains1/4 in. Connection
