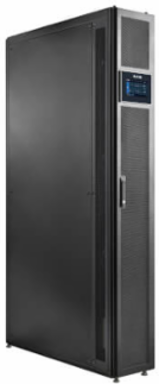

Tripp Lite SRCOOLDXRW25 In-Row Precision Cooling System, 25.8 kW (88,000 BTU), 3PH, 208V, 42U, 300mm
- MPN: SRCOOLDXRW25
- UPC: 037332250681
- PPN: TRP-SRCOOLDXRW25
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description

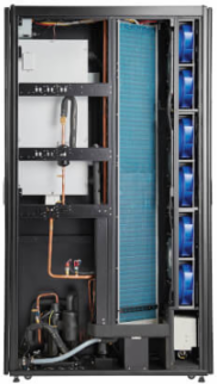

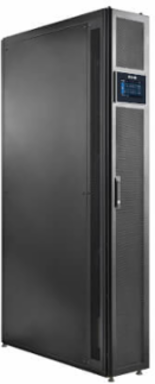

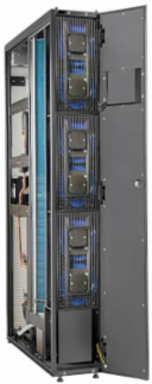

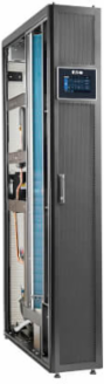

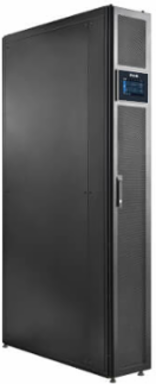

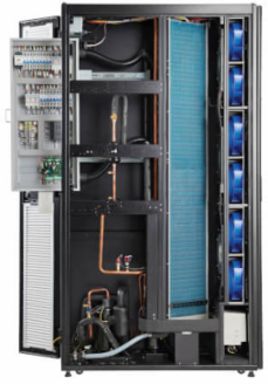

In-Row Precision Cooling System - 25.8 kW (88,000 BTU), 3PH, 208V, 42U, 300mm
Features

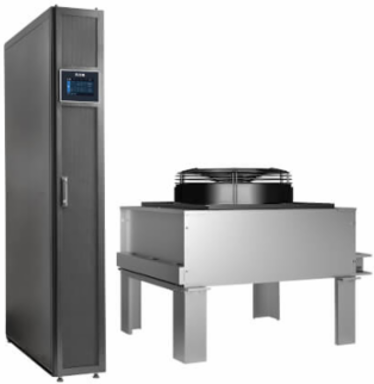

- Indoor in-row air conditioning unit
- Outdoor condenser

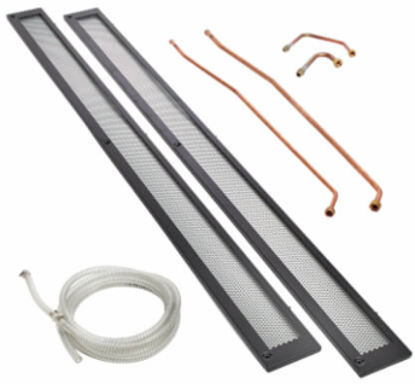

- Side discharge panels / adapters
- Hardware kits
- Owner's manual
Documentation & Downloads
Specifications
Material
- Color
- Black
- Refrigerant
- R410a (Environmentally friendly, Non ozone depleting)
- Compressor Type
- Rotary (Inverter Driven)
- Condensate Drain Pumps
- Max distance 150ft (45m), max lift 26.5ft (8m)
- Fan Controls
- Automatic
- Operation Mode
- Cooling, Standby, Off, Maintenance Mode
- Installation Modes
- Condenser above or slightly below In-Row; horizontal or vertical condenser
- Temperature Unit Selections
- Deg. F; Deg. C (default is Deg. F)
Material of ConstructionAluminium, Steel
Refrigerant Amount17.4 lb. / 8.0 kg (Nominal)
Front Panel LEDs7-inch color touchscreen
SNMP CompatibilityYes, WEBCARDLXMINI card included
Applied Containment TypesClose/Open
Force ModesMaintenance Mode, Rotation Mode
Manual ModesService and factory setting menus for manual adjustment
Performance
- Cooling Capacity
- 88000 BTU
- Maximum Input Amps
- 27
- Cooling Type
- Active
- Sound Level
- 68 dBA @ 3000 CFM @ 1 meter
- Storage Temperature Range
- -40° to 140°F (-40° to 60°C)
- Supply Air Temperature
- 18-27 deg. C (limited by heating load)
- Fans
- 0-3000 RPM x 6
Electrical Consumption10 kW
Airflow2,950 CFM
Audible Noise68 dBA
Operating Temperature4° to 115°F (-16° to 46°C)
Operating Humidity Range5 to 80%
Operating Elevation0-13123 ft. (0-4000 m)
Dimensions
- Input Connection Type
- 3-wire / 4-wire + Ground
- Input Frequency
- 60 Hz
- Unit Weight
- 437 lb
Voltage Compatibility208
Unit Dimensions78.700 x 11.800 x 43.300 in
Condensate Water Drains1/4 in. Connection
Reference
- Warranty Period
- 1-year limited warranty
