Weidmuller 2614940000 SRL 4
- MPN: 2614940000
- PPN: WDM-2614940000
CAD
$15.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

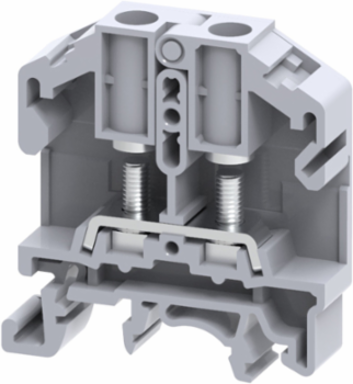

SRL 4
Documentation & Downloads
Specifications
Stud Connection
| Clamping range, bolted connection , max. | 6 mm² |
|---|---|
| Tightening torque, max. | 0.5 Nm |
| Clamping range, bolted connection , min. | 1.5 mm² |
|---|---|
| Tightening torque, min. | 0.5 Nm |
Approvals
| Approvals | CCSAUS, cURus |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 11 mm |
|---|---|
| Height | 46 mm |
| Depth including DIN rail | 52.2 mm |
| Width (inches) | 0.433 inch |
|---|---|
| Height (inches) | 1.811 inch |
| Net weight | 11 g |
Csa Rating Data
| Certificate number (cCSAus) | 70198654 |
|---|---|
| Wire cross section min. (cCSAusX) | 22 AWG |
| Wire cross section max. (cCSAusX) | 8 AWG |
|---|
Additional Technical Data
| Open sides | right |
|---|
| Type of fixing | Snap-on |
|---|
Material Data
| Material | Polyamide |
|---|
Classifications
| ETIM 6.0 | EC000897 |
|---|---|
| eClass 9.0 | 27-14-11-20 |
| eClass 10.0 | 27-14-11-20 |
| ETIM 7.0 | EC000897 |
|---|---|
| eClass 9.1 | 27-14-11-20 |
System Specifications
| End cover plate required | Yes |
|---|---|
| Number of levels | 1 |
| Number of potentials per tier | 1 |
| Rail | TS 35, TS 32 |
| PE function | No |
| Number of potentials | 1 |
|---|---|
| Number of clamping points per level | 2 |
| PE connection | No |
| N-function | No |
| PEN function | No |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Storage temperature, min. | 10 °C |
|---|
Rating Data
| Rated cross-section | 6 mm² |
|---|---|
| Rated current | 41 A |
| Volume resistance according to IEC 60947-7-x | 0.78 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Rated voltage | 1,000 V |
|---|---|
| Standards | IEC 60947-7-1 |
| Power loss in accordance with IEC 60947-7-x | 1.31 W |
| Pollution severity | 3 |
Conductors For Clamping (Rated Connection)
| Clamping range, bolted connection , max. | 6 mm² |
|---|---|
| Connection cross-section, stranded, max. | 6 mm² |
| Connection direction | on side |
| Tightening torque, max. | 0.5 Nm |
| Type of connection | Threaded stud connection |
| Wire connection cross section AWG, min. | AWG 22 |
| Wire connection cross-section, solid core, min. | 1.5 mm² |
| Clamping range, bolted connection , min. | 1.5 mm² |
|---|---|
| Connection cross-section, stranded, min. | 1.5 mm² |
| Number of connections | 2 |
| Tightening torque, min. | 0.5 Nm |
| Wire connection cross section AWG, max. | AWG 8 |
| Wire connection cross-section, solid core, max. | 6 mm² |
Ul Rating Data
| Certificate No. (cURus) | E60693 |
|---|
