Weidmuller 1789770000 WF 6/2BZ
- MPN: 1789770000
- PPN: WDM-1789770000
CAD
$23.69
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

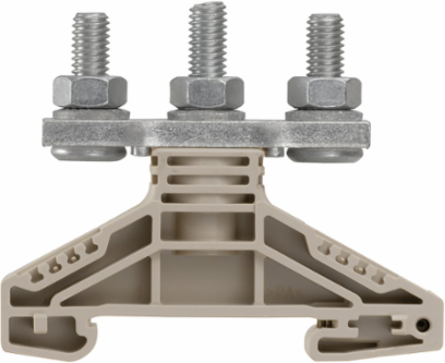

Bolt-type screw terminals, Feed-through terminal, Rated cross-section: 35 mm², Threaded stud connection
Documentation & Downloads
Specifications
Stud Connection
| 2 x cable lugs DIN 46 234 | 2.5 to 35 mm² |
|---|---|
| Cable lug to DIN 46234 | 2.5...35 mm² |
| Stud size for spade connection | M 6 |
| Tightening torque, min. | 3 Nm |
| 2 x cable lugs DIN 46 235 | 6...25 mm² |
|---|---|
| Cable lug to DIN 46235 | 6...25 mm² |
| Tightening torque, max. | 6 Nm |
Approvals
| Approvals | CE, CSA, cURus, EAC, KEMAKEUR |
|---|---|
| UL File Number Search | E60693 |
| ROHS | Conform |
|---|
Dimensions And Weights
| Width | 17.8 mm |
|---|---|
| Height | 67 mm |
| Depth | 54.5 mm |
| Net weight | 66.754 g |
| Width (inches) | 0.701 inch |
|---|---|
| Height (inches) | 2.638 inch |
| Depth (inches) | 2.146 inch |
Csa Rating Data
| Certificate No. (CSA) | 200039-1244019 |
|---|---|
| Voltage size C (CSA) | 1000 V |
| Current size C (CSA) | 115 A |
|---|---|
| Wire cross section max. (CSA) | 2 AWG |
Additional Technical Data
| Explosion-tested version | No |
|---|---|
| Type of mounting | Snap-on |
| Open sides | Open |
|---|
Material Data
| Material | Wemid |
|---|---|
| UL 94 flammability rating | V-0 |
| Colour | dark beige |
|---|
Safety Note
| Safety notice | Safety Information |
|---|
Classifications
| ETIM 6.0 | EC000897 |
|---|---|
| eClass 9.0 | 27-14-11-20 |
| eClass 10.0 | 27-14-11-20 |
| ETIM 7.0 | EC000897 |
|---|---|
| eClass 9.1 | 27-14-11-20 |
| UNSPSC | 30-21-18-01 |
System Specifications
| Number of levels | 1 |
|---|---|
| Levels cross-connected internally | No |
| Rail | TS 35 |
| Number of clamping points per level | 3 |
|---|---|
| PE connection | No |
Temperatures
| Storage temperature, max. | 40 °C |
|---|---|
| Storage temperature | 10 °C...40 °C |
| Continuous operating temp., max. | 120 °C |
| Storage temperature, min. | 10 °C |
|---|---|
| Continuous operating temp., min. | -50 °C |
Rating Data
| Rated cross-section | 35 mm² |
|---|---|
| Rated current | 125 A |
| Volume resistance according to IEC 60947-7-x | 0.26 mΩ |
| Rated impulse withstand voltage | 8 kV |
| Rated voltage | 1,000 V |
|---|---|
| Current at maximum wires | 125 A |
| Power loss in accordance with IEC 60947-7-x | 4 W |
| Pollution severity | 3 |
Conductors For Clamping (Rated Connection)
| 2 x cable lugs DIN 46 234 | 2.5 to 35 mm² |
|---|---|
| Cable lug to DIN 46234 | 2.5...35 mm² |
| Clamping range, max. | 35 mm² |
| Number of connections | 3 |
| Tightening torque, max. | 6 Nm |
| Type of connection | Threaded stud connection |
| 2 x cable lugs DIN 46 235 | 6...25 mm² |
|---|---|
| Cable lug to DIN 46235 | 6...25 mm² |
| Clamping range, min. | 2.5 mm² |
| Stud size for spade connection | M 6 |
| Tightening torque, min. | 3 Nm |
Ul Rating Data
| Certificate No. (cURus) | E60693 |
|---|---|
| Conductor size Factory wiring min. (cURus) | 2 AWG |
| Voltage size C (cURus) | 1000 V |
| Conductor size Factory wiring max. (cURus) | 2 AWG |
|---|---|
| Current size C (cURus) | 115 A |
