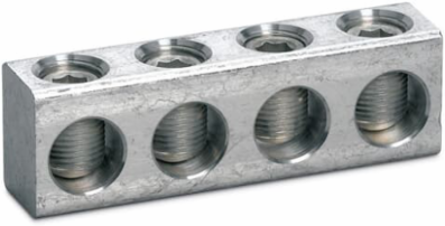

Homac ABC 6350 SSCREW PED CONN 12-350 6OUTL
- MPN: ABC 6350
- UPC: 783786682713
- PPN: T-B-ABC 6350
- UNSPSC: 39121447
CAD
$73.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Aluminum Set-Screw Bar Pedestal Connectors - Single-Line Bar, cable range #12 to 350 kcmil, length 6 inch, outlets 6, includes Ball-Bottomed screws. Uses Boot number BB 11 - order separately
Specifications
Additional Information
| Application | Designed for use in Above Grade Pedestals |
|---|---|
| Effective Date | 20080619 |
| Material | Aluminum |
| Product Name | ELECTRICAL CONNECTOR <1000V |
| Special Functions | High Strength Aluminum Alloy - Contant Bolting Pressure on Conductors maintained. Ball-Bottom Screws ensure maximum conductor contact pressure. Also breaks up interstrand oxides. |
| Wire Size | #12 to 350 kcmil |
| Brand / Label | Homac |
|---|---|
| Insulation Material | None |
| Mounting Type | Pedestal |
| Product Type | Set Screw Bar Pedestal Connectors |
| Standards | ANSI C119.4 Class A Tests |
Classifications
| WEEE Category | Product Not in WEEE Scope |
|---|
| IDEA Granular Category Code (IGCC) | 4667 >> Wire terminal disconnect |
|---|
Ordering
| Country of Origin | United States (US) |
|---|
| Selling Unit of Measure | each |
|---|
