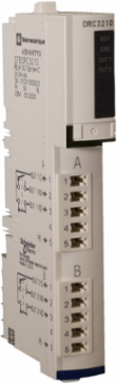

Schneider Electric STBDRC3210K Schneider Electric STBDRC3210 Standard Discrete Output Kit 2 Outputs, 24V DC, IP20, 0.13kg
Schneider Electric STBDRC3210K Schneider Electric STBDRC3210 Standard Discrete Output Kit 2 Outputs, 24V DC, IP20, 0.13kg
- MPN: STBDRC3210K
- PPN: SCH-STBDRC3210K
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$130.35/ EA
Description
This product is part of the Modicon STB range, an offer of modular distributed I/O. This standard discrete output kit has 2 discrete outputs, 2 normally open/normally contacts with solid state relay. It is a discrete output kit with a rated supply voltage of 24V DC and a current consumption of 55mA at 5V DC for logic bus. This product is compatible with most major fieldbus networks. It is an IP20 rated product. Its dimensions are 128.3mm (width) x 70mm (depth) x 18.4mm (height) and weighs 0.13kg. It is suitable for packaging, bottling, assembly, distribution, textile, printing and semiconductor machines applications. This product is certified by FM Class 1 Division 2, CE, UL and CSA. It meets EN/IEC 61131-2 type 3 standards. This kit is suitable for use with I/O base STBXBA2000 and power distribution module STBPDT3100/3105. The kit includes STBXTS2110, 5-terminal spring clamp connector, STBXTS1100, 5-terminal screw type connector, STBXBA3000 base and STBDRC3210 module. The Modicon LMC058 is the optimum solution for axis control and positioning, including automation functions. It forms a part of flexible machine control approach, a key component of MachineStruxure.
Specifications
Environment
- Product Certifications
- FM Class 1 Division 2 || CSA || UL
- Standards
- IEC 61131-2
- Shock Resistance
- 30 gn 11 ms IEC 88 reference 2-27
- Ip Degree Of Protection
- IP20 IEC 61131-2 class 1
- Ambient Air Temperature For Storage
- -40-85 °C without derating
- Operating Altitude
- <= 2000 m
Ambient Air Temperature For Storage-40...185 °F without derating
Ambient Air Temperature For Operation0-60 °C without derating)
Vibration Resistance3 gn 58-150 Hz 35 x 7.5 mm symmetrical DIN rail || 5 gn 58-150 Hz 35 x 15 mm symmetrical DIN rail || +/-0.35 mm 10-58 Hz
Pollution Degree2 IEC 60664-1
Relative Humidity95-95 % 60-60 °C without condensation
Ambient Air Temperature For Operation32...140 °F without derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
Mercury FreeYes
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Eu Rohs DirectivePro-active compliance (Product out of EU RoHS legal scope)
Complementary
- Insulation Between Channels And Logic Bus
- 1780 V for 1 minute
- Height
- 18.4 mm
- Reset
- manual reset COM fault
- Status Led
- 1 LED (green) module status (RDY) || 1 LED per channel (green) channel status (OUT1 to OUT2) || 1 LED (red) module error (ERR)
- Electrical Durability
- 100000 cycles resistive
- Hot Swapping Fallback
- yes for standard NIMs
- Response Time
- 5.25 ms off-to-on || 6.75 ms on-to-off
- Surge Current
- 20 A 10 ms capacitive
- Marking
- CE
- Discrete Output Current
- 2000 mA
- Insulation Between Channels
- 500 V for 1 minute
- Minimum Load
- 50 mA
- Overvoltage Category
- II
- Product Compatibility
- I/O base STBXBA2000 || power distribution module STBPDT3100/3105
Cold Swappingyes
Switching Capacity In Va600 VA resistive
Discrete Output Logicpositive or negative
Insulation Between Logic Bus And Actuator Bus1500 V for 1 minute
Output Voltage20...250 V AC || 5...30 V DC
Supplypower distribution module
Protection Typecoil protection integrated fuse on PDM time lag 10 A || output surge protection GMOV
Current Consumption55 mA 5 V DC logic bus
Net Weight0.13 kg
Fallback Statusstate 0 basic NIMs || user configurable standard NIMs
Mechanical Durability1000000 cycles
Width128.3 mm
Depth70 mm
[Us] Rated Supply Voltage24 V DC
Specifications
- Discrete Output Type
- relay
- Range Of Product
- Modicon STB distributed I/O solution
- Product Or Component Type
- standard digital output kit
- Discrete Output Number
- 2
Discrete Output Function2 NO/NC
Discrete Output Voltage TypeAC || DC
Discrete Output Voltage24 V || 115...230 V
Kit CompositionSTBXTS2110, 5-terminal spring clamp connector || STBXTS1100, 5-terminal screw type connector || STBXBA3000 base || STBDRC3210 module
