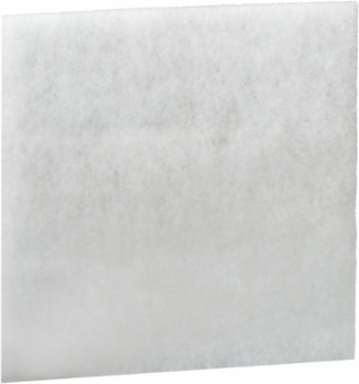

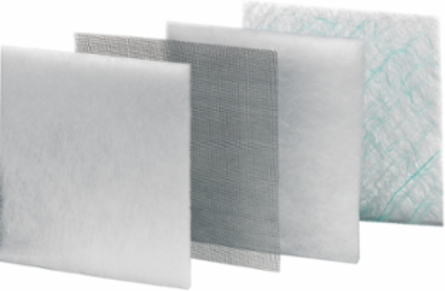

Schneider Electric NSYCAF125 Prisma P Standard Filter G2 125x125 mm Cut-Out, Set of 5
- MPN: NSYCAF125
- PPN: SCH-NSYCAF125
CAD
$15.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Prisma P standard filter G2 for outlet grille or fan cut-out. 125 x 125mm cut-out. External is 170 x 150 mm. Thermal management accessory. Between enclosure and outlet grille mounting. Compatible with ClimaSys CV. Synthetic Material. Set of 5.
Documentation & Downloads
Specifications
Key Specifications
- Height
- 6.69 in
- Country of Origin
- Brazil, Spain, France, United States
Width5.91 in
Important Information Attributes
- Persona Type Ids
- LC, OM, OM8, PB, SI
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Carbon Footprint Of The Distribution Phase [A4]
- 0.005945440597879783, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.0008847006669528737, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- kg CO2 eq., 0
- Local Publishable Date
- 2026-04-10
- Stocking Flag
- Y
- Weee Scope
- Out
- Eoli Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- CONTAINS_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1916
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 2
- Function Option
- Standard
- Energy Efficiency Optimized
- False
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- filter
- Range
- ClimaSys
- Software Version
- v6.2.5-6
- Thickness
- 8 mm
- Pep Code
- ENVPEP2012014EN
- Pep Verification Date
- 2024-06-09
- Psr Version
- PSR-0008-ed3-EN-2023 10 19
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 17
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- cut-out: 125 mm
- Width Nominal
- cut-out: 125 mm
- Accessory / Separate Part Category
- thermal management accessory
- Cut-out Dimensions
- 125 x 125 mm cut-out
- Package Weight(Lbs)
- 3.000 g
- Take-back
- No
- Other Technical Guide
- CPTG001_EN
Persona Type NamesContractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator
Market SegmentationCommercial, Industrial
Carbon Footprint Of The End-of-life Phase [C1 To C4]0 kg CO2 eq., 0.005498277634388206
Carbon Footprint Of The Manufacturing Phase [A1 To A3]0 kg CO2 eq., 0.016919072350009282
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
Scope PerimeterAt least in Europe
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
China Rohs Label7
Without Single Use PlasticNo
Tier Id2
Function Option IdSTANDARD
Product Kit IdentifierN
Mounting Locationbetween enclosure and outlet grille
Product NameClimaSys CA
Quantity Per Setset of 5
ReturnabilityNo
Sustainable PackagingNo
Total Lifecycle Carbon Footprint0 kg CO2 eq.
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionTo transfer air for ventilation, for a connection cross-section of 1 dm², over the typical product lifetime of 17 years
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; High voltage; 2020; Europe, EU-27
Recyclability Potential In %8
Height Usefulexternal: 170 mm
Width Realexternal: 150 mm
Accessory / Separate Part Destinationoutlet grille 170 x 150 mm
Nbr. Of Units In Pkg.1
Silicone-freeYes
Warranty (In Months)18
Customs Code5602290000
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Silicon Free
- Yes
- Environmental Disclosure
- ENVPEP2012014EN
- Packaging Made With Recycled Cardboard
- No
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2024-06-09
- Psr Version
- PSR-0008-ed3-EN-2023 10 19
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Carbon Footprint0.029247491249230144
Eu Rohs DirectiveCompliant By Exemption
Packaging Without Single Use PlasticNo
Pep CodeENVPEP2012014EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent external review
General Attributes
- Product Or Component Type
- filter
ETIM
- ETIM 8
- EC002513
ETIM 9EC002513
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
