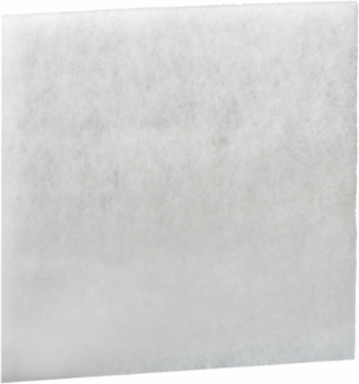

Schneider Electric NSYCAF223 Standard G2 Filter for Grille or Fan Cut-Out 223x223mm, Set of 5
- MPN: NSYCAF223
- PPN: SCH-NSYCAF223
CAD
$16.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Prisma P standard filter G2 for outlet grille or fan cut-out. 223 x 223mm cut-out. External is 268 x 248 mm. Thermal management accessory. Between enclosure and outlet grille mounting. Compatible with ClimaSys CV. Set of 5.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Spain, France, United States |
|---|---|
| Width | 9.76 in |
| Height | 10.55 in |
|---|
Important Information Attributes
| Persona Type Ids | LC, OM, OM8, PB, SI |
|---|---|
| Market Segmentation Id | COMMERCIAL, INDUSTRIAL |
| Carbon Footprint Of The Distribution Phase [A4] | 0.015854508261012756, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0023592017785409964, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | kg CO2 eq., 0 |
| Local Publishable Date | 2026-04-10 |
| Stocking Flag | Y |
| Preventive Maintenance | 12 |
| Weee Scope | Out |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1916 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Energy Efficiency Optimized | False |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | filter |
| Range | ClimaSys |
| Software Version | v6.2.5-6 |
| Thickness | 8 mm |
| Pep Code | ENVPEP2012014EN |
| Pep Verification Date | 2024-06-09 |
| Psr Version | PSR-0008-ed3-EN-2023 10 19 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 17 |
| Energy Model - Installation [A5] | No energy used |
| Energy Model - End Of Life [C1-c4] | Global, European and French datasets are used. |
| Height Nominal | cut-out: 223 mm |
| Width Nominal | cut-out: 223 mm |
| Accessory / Separate Part Category | thermal management accessory |
| Cut-out Dimensions | 223 x 223 mm cut-out |
| Package Weight(Lbs) | 8.000 g |
| Take-back | No |
| Customs Code | 5602290000 |
| Persona Type Names | Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, System Integrator |
|---|---|
| Market Segmentation | Commercial, Industrial |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.014662073691701884 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 0 kg CO2 eq., 0.04511752626669142 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Service Catalog Item | Finished good |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 7 |
| Without Single Use Plastic | No |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Product Kit Identifier | N |
| Mounting Location | between enclosure and outlet grille |
| Product Name | ClimaSys CA |
| Quantity Per Set | set of 5 |
| Returnability | Yes |
| Sustainable Packaging | No |
| Total Lifecycle Carbon Footprint | 0.1 kg CO2 eq. |
| Database Version | 2024-01 |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | To transfer air for ventilation, for a connection cross-section of 1 dm², over the typical product lifetime of 17 years |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Electricity Mix; Low voltage; 2020; France, FR |
| Energy Model - Use [B6] | Electricity Mix; High voltage; 2020; Europe, EU-27 |
| Recyclability Potential In % | 8 |
| Height Useful | external: 268 mm |
| Width Real | external: 248 mm |
| Accessory / Separate Part Destination | outlet grille 268 x 248 mm |
| Nbr. Of Units In Pkg. | 1 |
| Silicone-free | Yes |
| Warranty (In Months) | 18 |
| Other Technical Guide Name | CPTG001_EN |
Environment Attributes Main
| Take Back | No |
|---|---|
| China Rohs Regulation | X |
| Silicon Free | Yes |
| Environmental Disclosure | ENVPEP2012014EN |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2024-06-09 |
| Psr Version | PSR-0008-ed3-EN-2023 10 19 |
| Recycled Metal Content At Cr Level | 0 % |
|---|---|
| Mercury Free | Yes |
| Carbon Footprint | 0.07799330999794706 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2012014EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | filter |
|---|
ETIM
| ETIM 8 | EC002513 |
|---|
| ETIM 9 | EC002513 |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
