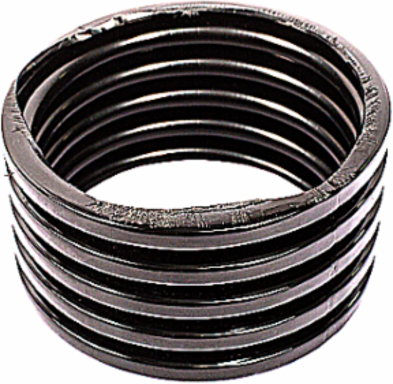

Adaptaflex PACS106/BL/10M Standard Weight Conduit 95mm, 106.5mm OD, 10 Meter Length, Flexible, UV Resistant
- MPN: PACS106/BL/10M
- UPC: 786210241135
- PPN: T-B-PACS106/BL/10M
CAD
$1266.32
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Standard Weight Conduit, NW Conduit Size 95mm, Coarse Conduit Pitch, Outside Diameter 106.5mm, Inside Diameter 91.5mm, Static Bend Radius 210mm, Reel Length 10 Meters, Polyamide (Nylon) 6, Black
Documentation & Downloads
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- Adaptaflex
- Special Features
- High Fatigue Life, Self Extinguishing, Halogen Free
- Trade Size
- 95mm
- Inside Diameter
- 91.5mm
- Radius
- 210mm
- Material
- Polyamide/Nylon 6
IGCC5535 Electrical conduit
TypeStandard Weight Conduit with Coarse Pitch
ApplicationIndoors / Outdoors - Light Industrial, Buildings & Machinery
Outside Diameter106.5mm
Length10 m
FlexibilityHigh
ColorBlack
European Specifications (ETIM)
- ETIM
- EC001175 Corrugated plastic hose
- Nominal size in inch
- Other
- Inner diameter
- 91.5mm
- Operating temperature
- -40-+120°C
- Fire resistance in accordance with UL94
- V2
- Colour
- Black
- Bending strength
- Flexible
- Halogen free
- Y
- Approved according to UR
- Y
- Approved according to Lloyd's Register TA
- Y
Nominal diameter95mm
Outer diameter106.5mm
MaterialPolyamide 6
Degree of protection (IP)IP68
UV resistantY
Sheathing materialNot sheathed
Lengthwise slottedN
Approved according to DIN EN 61386-23Y
Approved according to LUL/British StandardY
Approved according to NF F 16-101Y
Packaging
- Inner Quantity
- 1
- Outer Quantity
- 1
- Weight Uom
- 18.74 lbs. Each
Inner Dimensions (inches)17x37x17
Outer Dimensions (inches)17x37x17
