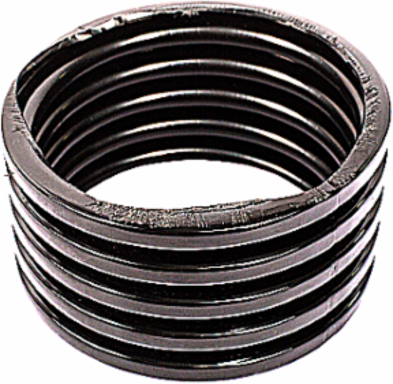

Adaptaflex PACS80/BL/10M Standard Weight Conduit with Coarse Pitch
Adaptaflex PACS80/BL/10M Standard Weight Conduit with Coarse Pitch
- MPN: PACS80/BL/10M
- UPC: 786210241210
- PPN: T-B-PACS80/BL/10M
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$980.80/ EA
Description
Standard Weight Conduit, Nominal Conduit Size 80mm, NW Conduit Size 70, Coarse Conduit Pitch, Outside Diameter 79.3mm, Inside Diameter 67.0mm, Static Bend Radius 160mm, Reel Length 10 Meters, Polyamide (Nylon) 6, Black
Specifications
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- Adaptaflex
- Special Features
- High Fatigue Life, Self Extinguishing, Halogen Free
- Trade Size
- 80mm
- Inside Diameter
- 67.0mm
- Radius
- 160mm
- Material
- Polyamide/Nylon 6
IGCC5535 Electrical conduit
TypeStandard Weight Conduit with Coarse Pitch
ApplicationIndoors / Outdoors - Light Industrial, Buildings & Machinery
Outside Diameter79.3mm
Length10 m
FlexibilityHigh
ColorBlack
Packaging
- Inner Quantity
- 1
- Outer Quantity
- 1
- Weight Uom
- 10.58 lbs. Each
Inner Dimensions (inches)17x37x17
Outer Dimensions (inches)17x37x17
European Specifications (ETIM)
- ETIM
- EC001175 Corrugated plastic hose
- Outer diameter
- 79.3mm
- Material
- Polyamide 6
- Degree of protection (IP)
- IP68
- UV resistant
- Y
- Sheathing material
- Not sheathed
- Lengthwise slotted
- N
- Approved according to DIN EN 61386-23
- Y
- Approved according to LUL/British Standard
- Y
- Approved according to NF F 16-101
- Y
Nominal diameter80mm
Inner diameter67mm
Operating temperature-40-+120°C
Fire resistance in accordance with UL94V2
ColourBlack
Bending strengthFlexible
Halogen freeY
Approved according to URY
Approved according to Lloyd's Register TAY
