Adaptaflex PACS54/BL/25M Standard Weight Coarse Pitch Electrical Conduit, 54mm Size, 25 Meter Length
- MPN: PACS54/BL/25M
- UPC: 786210147161
- PPN: T-B-PACS54/BL/25M
CAD
$669.85
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description

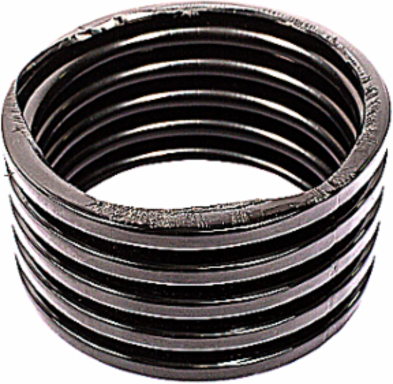

Standard Weight Conduit, Nominal Conduit Size 54mm, NW Conduit Size 48, Coarse Conduit Pitch, Outside Diameter 54.5mm, Inside Diameter 46.5mm, Static Bend Radius 75mm, Reel Length 25 Meters, Polyamide (Nylon) 6, Black
Specifications
North American Specifications (UNSPSC)
| UNSPSC | 39131706 Electrical conduit |
|---|---|
| Brand Name | Adaptaflex |
| Special Features | High Fatigue Life, Self Extinguishing, Halogen Free |
| Trade Size | 54mm |
| Inside Diameter | 46.5mm |
| Radius | 75mm |
| Material | Polyamide/Nylon 6 |
| IGCC | 5535 Electrical conduit |
|---|---|
| Type | Standard Weight Conduit with Coarse Pitch |
| Application | Indoors / Outdoors - Light Industrial, Buildings & Machinery |
| Outside Diameter | 54.5mm |
| Length | 25 m |
| Flexibility | High |
| Color | Black |
Packaging
| Inner Quantity | 1 |
|---|---|
| Outer Quantity | 10 |
| Weight Uom | 13.3 lbs. Each |
| Inner Dimensions (inches) | 24.5x24.5x50 |
|---|---|
| Outer Dimensions (inches) | 48x40x50 |
European Specifications (ETIM)
| ETIM | EC001175 Corrugated plastic hose |
|---|---|
| Outer diameter | 54.5mm |
| Material | Polyamide 6 |
| Degree of protection (IP) | IP68 |
| UV resistant | Y |
| Sheathing material | Not sheathed |
| Lengthwise slotted | N |
| Approved according to DIN EN 61386-23 | Y |
| Approved according to LUL/British Standard | Y |
| Approved according to NF F 16-101 | Y |
| Nominal diameter | 54mm |
|---|---|
| Inner diameter | 46.5mm |
| Operating temperature | -40-+120°C |
| Fire resistance in accordance with UL94 | V2 |
| Colour | Black |
| Bending strength | Flexible |
| Halogen free | Y |
| Approved according to UR | Y |
| Approved according to Lloyd's Register TA | Y |
