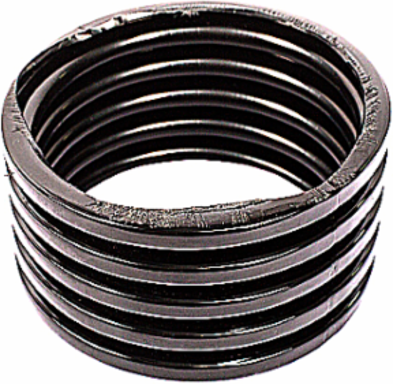

Adaptaflex PACS54/BL/50M Standard Weight Conduit with Coarse Pitch
- MPN: PACS54/BL/50M
- UPC: 786210147055
- PPN: T-B-PACS54/BL/50M
CAD
$1543.28
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Standard Weight Conduit, Nominal Conduit Size 54mm, NW Conduit Size 48, Coarse Conduit Pitch, Outside Diameter 54.5mm, Inside Diameter 46.5mm, Static Bend Radius 75mm, Reel Length 50 Meters, Polyamide (Nylon) 6, Black
Specifications
European Specifications (ETIM)
- ETIM
- EC001175 Corrugated plastic hose
- Outer diameter
- 54.5mm
- Material
- Polyamide 6
- Degree of protection (IP)
- IP68
- UV resistant
- Y
- Sheathing material
- Not sheathed
- Lengthwise slotted
- N
- Approved according to DIN EN 61386-23
- Y
- Approved according to LUL/British Standard
- Y
- Approved according to NF F 16-101
- Y
Nominal diameter54mm
Inner diameter46.5mm
Operating temperature-40-+120°C
Fire resistance in accordance with UL94V2
ColourBlack
Bending strengthFlexible
Halogen freeY
Approved according to URY
Approved according to Lloyd's Register TAY
North American Specifications (UNSPSC)
- UNSPSC
- 39131706 Electrical conduit
- Brand Name
- Adaptaflex
- Special Features
- High Fatigue Life, Self Extinguishing, Halogen Free
- Trade Size
- 54mm
- Inside Diameter
- 46.5mm
- Radius
- 75mm
- Material
- Polyamide/Nylon 6
IGCC5535 Electrical conduit
TypeStandard Weight Conduit with Coarse Pitch
ApplicationIndoors / Outdoors - Light Industrial, Buildings & Machinery
Outside Diameter54.5mm
Length50 m
FlexibilityHigh
ColorBlack
Packaging
- Inner Quantity
- 1
- Outer Quantity
- 1
- Weight Uom
- 26.59 lbs. Each
Inner Dimensions (inches)24.5x24.5x50
Outer Dimensions (inches)48x40x50
