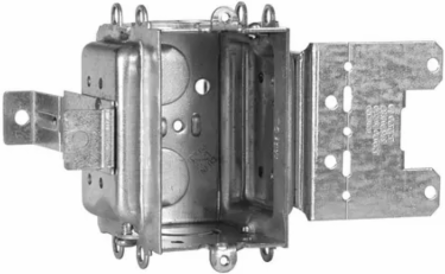

Hubbell 3104MSB1 Steel Stud Switch Box 2-1/2 Inch Deep, 16 Cu. In., Gangable, 20-Pack
- MPN: 3104MSB1
- UPC: 626463032534
- PPN: HBL-3104MSB1
CAD
$5.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Steel Stud Switch Box 2-1/2 Inch Deep, 16 Cu. In., Gangable, 20-Pack
Features
- Designed with a heavy-duty MSB steel bracket, this device box mounts rapidly to standard 2-3/8 in and 3-5/8 in metal studs. The rigid bracket profile prevents twisting or flexing under structural pressure, ensuring your commercial wall switches and receptacles remain perfectly square and structurally secure during sheetrock deployment.
- Featuring a dedicated 0.9375-inch bracket setback, this box is factory-calibrated to accommodate exactly two layers of 1/2-in drywall. This intentional spacing eliminates the need for field-installed extension rings on fire-rated partitions and multi-layered drywall separations, significantly lowering your overall hardware costs and labor hours.
- Built with a fully gangable welded steel construction, the box allows field electricians to easily remove the side walls and link multiple units together on-site. This modularity transforms a single-gang enclosure into a multi-gang configuration in seconds, eliminating the need to stock multiple box sizes for varying device layout specs
- Outfitted with two 1/2-in bottom knockouts and two 1/2-in & 3/4-in concentric end knockouts, this box provides versatile entry paths for traditional EMT and rigid conduit systems. The clean-stamping design allows for crisp, struggle-free slug removal, reducing pipe termination time and maintaining tight fittings inside shallow wall cavities.
- Boasting a 2-1/2-in deep profile and a total capacity of 16.0 cubic inches, this tradeSELECT® box easily satisfies NEC and CEC conductor fill-rate rules. It provides ample room for bulky smart dimmers, GFCI receptacles, and associated pass-through conductors, eliminating wire-crushing damage and preventing localized thermal issues behind the wall plate.
Documentation & Downloads
Specifications
Additional
- Volume
- 16 Cu. In.
- Gang
- 1-Gang
- Bracket Setback
- 0.9375 in
- Knockouts - Bottom
- 2 x 1/2 in
- Material
- Steel
- Compliance
- CSA Certified
- Weight
- 0.65 lb
Depth2.5 in
Bracket TypeMSB, for Steel Stud
Knockouts - End2 x 1/2-3/4 in Combination
Raised GroundYes
ConstructionWelded
Wiring SystemConduit
ColorGray
