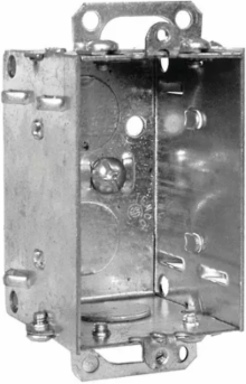

Hubbell 1102BAR 2 Inch Deep Gangable Device Box, Steel, CSA Certified, 1-Gang
- MPN: 1102BAR
- UPC: 626463000830
- PPN: HBL-1102BAR
CAD
$5.50
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Designed for durability and versatility, this 2-inch deep gangable device box from Hubbell is an essential component for any electrical installation. Constructed from rugged metallic materials, it features recessed ears that accommodate the thickness of two drywall sheets, making it ideal for shallow installations and rework applications. Certified by CSA, this switch box is equipped with multiple knockouts, allowing for convenient wiring options. Whether you are housing switches or receptacles, this device box ensures a reliable and secure fit, meeting the highest industry standards.
Features
- Measuring just 2 inches deep, this compact 1-gang electrical box is specifically engineered for shallow wall installations, such as furred-out basement walls or narrow structural cavities. The minimized depth provides a problem-solving solution for tight spaces without sacrificing the structural integrity required to securely house standard switches or receptacles.
- This modular welded steel construction allows you to easily remove the side walls and link multiple units together on-site. This gangable flexibility eliminates the need to carry separate multi-gang boxes in your inventory, letting you customize your layout seamlessly from a single switch to a multi-gang assembly right at the rough-in stage.
- Equipped with adjustable plaster ears, this device box is highly optimized for remodel and retrofit projects. The recessed design is engineered to flushly accommodate the depth of dual drywall layers, preventing unsightly wall bulging and ensuring your switches and outlets mount perfectly flat against the finished surface.
- The box features four 1/2-inch knockouts (two on the ends and two on the bottom) combined with built-in U-clamps to facilitate fast entry for NMD90 and BX90 armored cables. This hybrid design ensures secure mechanical cable retention and code-compliant strain relief, whether you are running conduit or traditional non-metallic sheathed wiring.
Documentation & Downloads
Specifications
Additional
- Number of Gangs
- 1-Gang
- Material
- Steel
- Knockouts - End
- 2 x 1/2 in
- Raised Ground
- Yes
- Color
- Gray
Depth2 in
Weight0.41 lb
Knockouts - Bottom2 x 1/2 in
ComplianceCSA Certified
Construction StyleWelded
