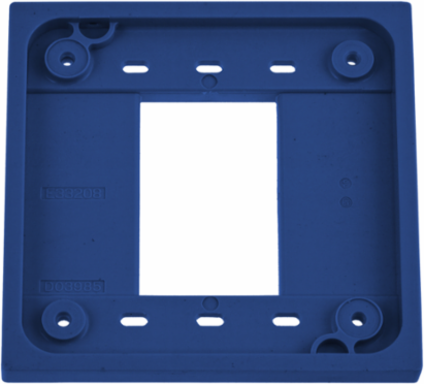

Hubbell Wiring Device-Kellems HBL4APBL 4-Plex Adapter Plate for 1-2 Gang Boxes, Blue, 125V, 20A
- MPN: HBL4APBL
- UPC: 783585014043
- PPN: HBL-HBL4APBL
- UNSPSC: 39121406
CAD
$23.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Accessories, 4-Plex Adapter Plate for 1 and 2 Gang device boxes, Blue, Single Pack
Features
- Anchor hole and loop feature secures solid wire for fast, easy terminations
- Triple wipe contacts
- Easily accessible break-off tabs for split wiring
- Three conductors energize all four outlets
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 3.38 in
- Performance
- Environmental - Flammability - UL 94 V-2
- Application
- Commercial Grade
- Dielectric Strength
- Withstands 2,000V minimum
- Size
- 4.78 in x 0.39 in x 3.38 in
- Voltage Rating
- 125 V
- Weight
- 0.15 lb.
- Engineering Drawing 1 Display Text
- HBL4APBL AutoCAD Drawing
- General Literature Asset 2 Display Text
- SpikeShield® Surge Protective Devices
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 4APBL
- Material - Mounting Hardware
- Screw Mounting
- Series
- 4-Outlet Receptacle
- BOX SIZE
- 5.125x6.245x6.245 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585014043
- Case - Total Units
- 30 EA
- Each - Pack Description
- Each
- NAICS Code
- 3359326104
Dimensions4.78 in x 0.39 in x 3.38 in
Length4.78 in
Amperage Rating20 A
ColorBlue
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
TypeAdapter Plate
Voltage Rating Description125 V
Width0.39 in
General Literature Asset 1 Display TextDuct Products Guide
Display SizeStandard Sized Product
Description - InvoiceADAPTER PLATE, 4-PLEX, BL
Harmonization Code3925900000
MSDS FlagNo
Sub Class CodeA04A060
MaterialPolycarbonate
Base Unit of MeasureEA
Carton - Gross Weight per Pack5.3 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Case Weight4.500 lb.
Lowest Level UOMEach
