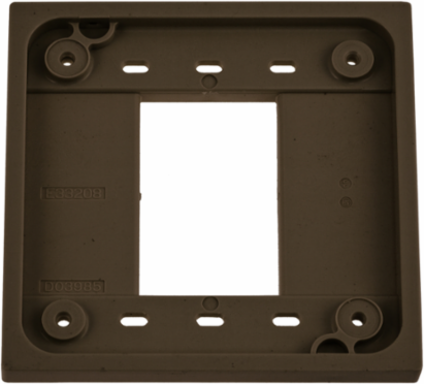

Hubbell Wiring Device-Kellems HBL4AP 4-Plex Hospital Grade Adapter Plate, 4.78 Inch x 4.78 Inch, Brown
Hubbell Wiring Device-Kellems HBL4AP 4-Plex Hospital Grade Adapter Plate, 4.78 Inch x 4.78 Inch, Brown
- MPN: HBL4AP
- UPC: 783585014036
- PPN: HBL-HBL4AP
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$23.55/ EA
Description
Straight Blade Devices, Accessories, 4-Plex Adapter Plate for 1 and 2 Gang device boxes, Brown, Single Pack
Features
- Mounts directly to 1 and 2 gang or 4-inch square boxes
- Adapter Plate
Specifications
Specifications
- Country of Origin
- Puerto Rico
- Height
- 0.58 in
- Length
- 4.78 in
- Color
- Brown
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Special Features
- Adapter Plate
- Type
- Adapter Plate
- Width
- 4.78 in
- General Literature Asset 1 Display Text
- Duct Products Guide
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 4AP
- Material
- Polycarbonate
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 4.9 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Case Weight
- 7.150 lb.
- Lowest Level UOM
- Each
Dimensions4.78 in x 4.78 in x 0.58 in
Industry Standard(s)Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186
Application4-Plex Hospital Grade
Dielectric StrengthWithstands 2,000V minimum
Size4.78 in x 4.78 in x 0.58 in
StandardCertified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186
Weight0.15 lb.
Engineering Drawing 1 Display TextHBL4AP AutoCAD Drawing
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceADAPTER PLATE, 4-PLEX, BR
Harmonization Code3925900000
MSDS FlagNo
Sub Class CodeA04A060
Series4-Outlet Receptacle
BOX SIZE5.500x6.100x6.200 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585014036
Case - Total Units30 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
