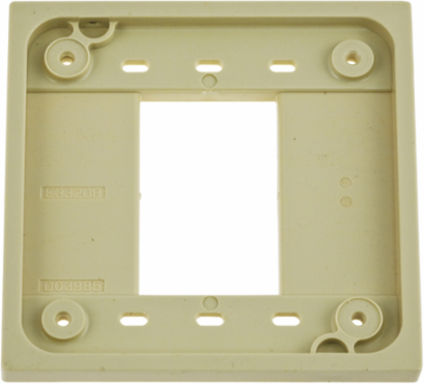

Hubbell Wiring Device-Kellems HBL4API 4-Plex Adapter Plate, Ivory, 4.78 Inch x 4.78 Inch x 0.58 Inch
- MPN: HBL4API
- UPC: 783585013763
- PPN: HBL-HBL4API
- UNSPSC: 39121406
CAD
$23.55
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Accessories, 4-Plex Adapter Plate for 1 and 2 Gang device boxes, Ivory, Single Pack
Features
- Mounts directly to 1 and 2 gang or 4-inch square boxes
- Adapter Plate
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL4API AutoCAD Drawing
- General Literature Asset 2 Display Text
- SpikeShield® Surge Protective Devices
- Dimensions
- 4.78 in x 4.78 in x 0.58 in
- Industry Standard(s)
- Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186
- Application
- 4-Plex Hospital Grade
- Dielectric Strength
- Withstands 2,000V minimum
- Size
- 4.78 in x 4.78 in x 0.58 in
- Standard
- Certified to CSA 22.2, No. 42 File 285;Listed to UL Standard 498 File E2186
- Weight
- 0.15 lb.
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- ADAPTER PLATE, 4-PLEX, IV
- Harmonization Code
- 3925909900
- MSDS Flag
- No
- Sub Class Code
- A04A060
- Series
- 4-Outlet Receptacle
- BOX SIZE
- 5.700x6.100x6.300 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585013763
- Case - Total Units
- 30 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585013762
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 1 Display TextDuct Products Guide
Country of OriginUnited States
Height0.58 in
Length4.78 in
ColorIvory
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Special FeaturesAdapter Plate
TypeAdapter Plate
Width4.78 in
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number4API
MaterialPolycarbonate
Base Unit of MeasureEA
Carton - Gross Weight per Pack5.3 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Case Weight9.874 lb.
Lowest Level UOMEach
Pallet Height42.600 in
Pallet Weight348.000 lb.
NAICS Code3359326104
