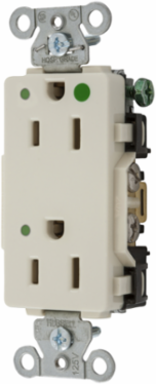

Hubbell Wiring Device-Kellems 2182LAL Hospital Grade Decorator Duplex Receptacle, 20A 125V, 5-20R, LED Indicator, Light Almond
Hubbell Wiring Device-Kellems 2182LAL Hospital Grade Decorator Duplex Receptacle, 20A 125V, 5-20R, LED Indicator, Light Almond
- MPN: 2182LAL
- UPC: 783585196190
- PPN: HBL-2182LAL
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$40.05/ EA
Description
Straight Blade Devices, Decorator Duplex Receptacle, Hospital Grade, Hubbell-Pro, LED Indicator, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Light Almond.
Features
- Green LED Power Indicators to identify emergency circuits
- Triple wipe contacts
- High impact resistant decorator face
- Steel mounting strap
- Self Grounding, LED Indicator, USA Product
Specifications
Specifications
- Country of Origin
- MX
- Dimensions
- 3.28 in x 1.57 in x 1.15 in
- Height
- 1.15 in
- Industry Standard(s)
- Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
- Application
- Hubbell-Pro Heavy Duty Hospital Grade
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- 5-20R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.57 in x 1.15 in
- Standard
- Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Voltage Rating
- 125 VAC
- Wire Size
- #14 AWG to #10 AWG
- Weight
- 0.2 lb.
- Connectivity
- Back and Side Wired Screw Terminals
- Nema Rating
- 5-20R
- Number Of Wires
- 3-Wire
- Style
- Style Line decorator
- Description - Invoice
- HUBBELL-PRO HG DECO 20A/125V LED LA
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Indicator(s) Type
- Green LED
- Series
- Hubbell-Pro
- BOX SIZE
- 3.548x9.858x4.298 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585196190
- Case Weight
- 20.000 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Each - Width1.910 in
Horsepower - Maximum1
Length3.28 in
Amperage Rating20 A
ColorLight Almond
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesSelf Grounding, LED Indicator, USA Product
TypeDuplex Receptacle
Wattage2500 W
Voltage Rating Description125 V
Width1.57 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA04A040
Current Rating20 A
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.100 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- No
