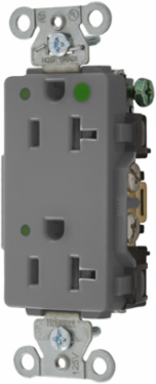

Hubbell Wiring Device-Kellems 2182GYL Decorator Duplex Receptacle, Hospital Grade, 20A 125V, Self Grounding, LED Indicator
- MPN: 2182GYL
- UPC: 783585196152
- PPN: HBL-2182GYL
- UNSPSC: 39121406
CAD
$41.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Decorator Duplex Receptacle, Hospital Grade, Hubbell-Pro, LED Indicator, 20A 125V, 2- Pole3-Wire Grounding, 5-20R, Gray.
Features
- Green LED Power Indicators to identify emergency circuits
- Triple wipe contacts
- High impact resistant decorator face
- Steel mounting strap
- Self Grounding, LED Indicator, USA Product
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Number of Poles
- 2-Pole
- Wattage
- 2500 W
- Dielectric Voltage Withstand
- 2000 V minimum
- Length
- 3.28 in
- Height
- 1.15 in
- Material
- Nylon
- Base Material
- PBT
- Power Contacts Material
- Brass
- Clamping Plate Material
- Plated Steel
- Mounting Screws Material
- Zinc Plated Steel
- Grade
- Hospital Grade
- Connectivity
- Back and Side Wired Screw Terminals
- Flammability Rating
- UL 94V-2
- NEMA Rating
- 5-20R
- Color
- Gray
- Phase
- Single Phase
Voltage125 VAC
Number of Wires3-Wire Grounding
Operating Temperature Range-40°C to 75°C
Terminal Accommodation#12 to #10 AWG stranded or solid copper wire
Width1.57 in
Weight0.2 lb.
Face MaterialNylon
Mounting Strap MaterialGalvanized Steel
Ground Contacts MaterialBrass
Self-grounding Staple MaterialStainless Steel
Mounting StrapSteel
Device TypeDecorator Duplex Receptacle
Indicator TypeGreen LED
ComplianceUL Listed, CSA Certified, Fed. Spec. W-C-596, NEMA WD-6 Compliant
StandardCertified to CSA, C22.2 No. 42;Fed. Spec. W-C-596;UL Listed UL498
Country of OriginMX
