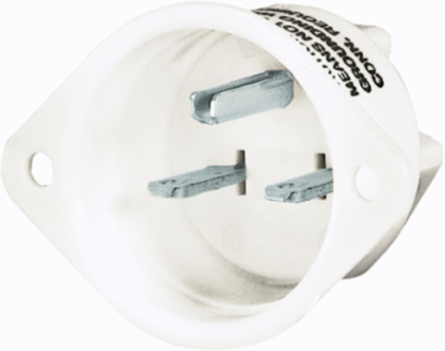

Bryant 5678 Flanged Inlet, 15A 250V, Nylon Cup, 2-Pole 3-Wire, White, 1.84 x 2.50 x 1.55 Inch
- MPN: 5678
- UPC: 781786626041
- PPN: HBL-5678
- UNSPSC: 39121406
CAD
$60.14
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Straight Blade Devices, Male Inlets, Flanged, Industrial/Commercial, Nylon Cup, 15A 250V, 2-Pole 3-Wire Grounding, 6-15P, White, Single Pack
Features
- Flanged
- Industrial/Commercial
- Nylon Cup
- 15A 250V
- 2-Pole 3-Wire Grounding
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 1.84 in x 2.50 in x 1.55 in
- Length
- 1.84 in
- Amperage Rating
- 15 A
- Color
- White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- NEMA Rating
- 6-15P
- Number of Wires
- 3-Wire
- Special Features
- Standard Product
- Type
- Flanged Inlet
- Wattage
- 3750
- Weight
- 0.05 lb.
- Connectivity
- Screw Terminals
- Nema Rating
- 6-15P
- Number Of Wires
- 3-Wire
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A010
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 12.500 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating15 A
Height1.55 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial
Dielectric StrengthWithstands 3000V Minimum in
InsulationInsulated Body
Number of Poles2-Pole
Size1.84 in x 2.50 in x 1.55 in
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Voltage Rating250 V
Voltage Rating Description250 V
Width2.50 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleClamp Type
Description - InvoiceFLG-INLET, 15A 250V, 6-15P
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
SeriesHeavy Duty
BOX SIZE2.548x8.418x4.918 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786626041
Case - Total Units50 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
