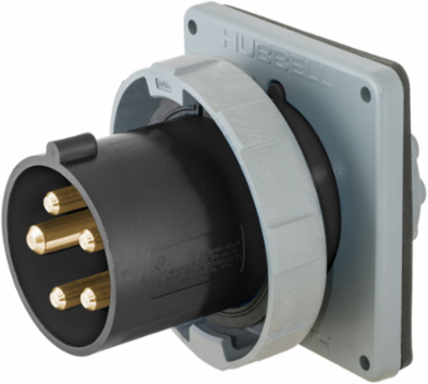

Hubbell Wiring Device-Kellems HBL560B5W IEC Pin and Sleeve Male Flanged Inlet 60A 4-Pole 5-Wire Watertight
- MPN: HBL560B5W
- UPC: 783585405605
- PPN: HBL-HBL560B5W
- UNSPSC: 39121406
CAD
$966.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Heavy Duty IEC Pin and Sleeve Industrial Grade Male Flanged Inlet, 60A 3-Phase Wye 347/600V AC, 4-Pole 5-Wire Grounding, Terminal Screws, Watertight
Features
- Solid one-piece pins for reliable electrical contact
- Gasketed sealing ring provides watertight seal
- Raised collar surrounds each phase pin
- Watertight
Documentation & Downloads
Specifications
Additional
- Amperage
- 60 A
- Number of Poles
- 4-Pole
- Wattage
- 36000 W
- Material
- Thermoplastic, PBT, Solid Neoprene, High-Impact Thermoset, Stainless Steel, Santoprene
- Connectivity
- Pressure Terminal Screws
- Ingress Protection
- Type 3R, 3RX, 4X, IP68, IP69K
- Certification
- UL Listed, CSA Certified, UL Classified to IEC 60309-1 IEC 60309-2
- Dielectric Voltage Withstand
- 3000 V AC
- Country of Origin
- PR
Voltage347/600 V AC, 3-Phase Wye
Number of Wires5-Wire
Temperature Rating-40°C to 75°C Maximum Continuous
Mounting HardwareScrew Mounting
NEMA RatingNon-NEMA
Flammability RatingV-0
Current InterruptingCertified for full rated current
ColorBlack
