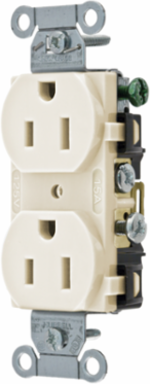

Hubbell Wiring Device-Kellems CR15LA Commercial Grade Duplex Receptacle 15A 125V Light Almond
Hubbell Wiring Device-Kellems CR15LA Commercial Grade Duplex Receptacle 15A 125V Light Almond
- MPN: CR15LA
- UPC: 783585127583
- PPN: HBL-CR15LA
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2.86/ EA
Description
Straight Blade Devices, Receptacles, Duplex, Commercial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Light Almond, Single Pack.
Features
- Easy access split circuit tab
- Fork terminal capable
- Smooth face
- Triple wipe contacts
Specifications
Dimensions
- Dimensions
- 1.32 in x 0.83 in x 3.28 in
- Height
- 3.28 in
- Weight
- 0.15 lb
Display SizeStandard Sized Product
Length1.32 in
Width0.83 in
Certifications and Compliance
- Nema Rating
- 5-15R
Conductor Related
- Number Of Wires
- 3-Wire
Wire Size#14 AWG to #10 AWG
General
- Application
- Commercial Specification Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Item Type
- Traditional Duplex
- Material - Mounting Hardware
- Screw Mounting
- OEM Brand Name
- Hubbell Wiring Device-Kellems
- Series
- Commercial Specification Grade
- Type
- Standard Duplex
ColorLight Almond
Horsepower - Maximum0.5
MaterialNylon
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StyleSmooth Face
UPC783585127583
Electrical Ratings
- Amperage Rating
- 15 A
- Current / Amperage Rating
- 15 A
- Dielectric Strength
- Withstands 2,000V minimum
- Voltage Rating
- 125 V
- Wattage
- 1875 W
ConnectivitySide Wired
Current Rating15 A
PhaseSingle Phase
Voltage Rating Description125 V
Logistics
- Carton Quantity
- 10 EA
