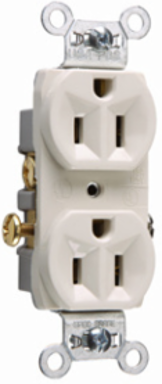

Pass & Seymour CR15LA 15A 125V Commercial Duplex Receptacle, Side Wire, Light Almond, 2.635 Inch Height
Pass & Seymour CR15LA 15A 125V Commercial Duplex Receptacle, Side Wire, Light Almond, 2.635 Inch Height
- MPN: CR15LA
- UPC: 785007608038
- PPN: P-S-CR15LA
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$5.98/ EA
Description
Commercial Spec Grade Duplex Receptacle, Side Wire 15A 125V
Features
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly.
- .032 inch thick, brass, triple-wipe power contacts for lasting retention.
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring.
- Impact-resistant nylon face and thermoplastic back body.
- Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire.
- Terminal compartments isolated from each other for positive conductor containment.
- Auto-ground clip assures positive ground.
- For covering patents, see www.legrand.us/patents.
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here.
- Temperature Rise: Maximum 30°C temperature rise at full-rated current after 50 cycles of overload at 150% of rated current with direct current. Operating Temperature: Maximum continuous +50°C, minimum -40°C without impact
Specifications
Specifications
- Depth
- 0.78 in
- Color
- Light Almond
- Product Line
- Pass & Seymour
- Country of Origin
- Mexico
- Voltage
- 125.0 V
- Number of Wires
- 3.0
- Wire Size
- 14 - 10 AWG
- Features
- Impact Resistant
- Standard
- CSA C22.2 No. 42
- Number of Poles
- Double Pole
- Connection Location
- Side Only
- Wire Connection Type
- Screw Terminals
- Operating Temperature Max
- 60.0 °C
- Operating Temperature
- -40°-60°C
- Environmental Conditions
- Flammability: UL94 V2
- Special Features
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly. .032 inch thick, brass, triple-wipe power contacts for lasting retention. Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring. Impact-resistant nylon face and thermoplastic back body. Accepts #14 - #10 AWG solid or stranded copper or copper-clad wire. Terminal compartments isolated from each other for positive conductor containment. Tri-drive terminal and mounting screws. Auto-ground clip assures positive ground.
Height2.635 in
Width1.322 in
StandardUL498
Amperage15.0 A
Mounting TypeBox
Indoor/OutdoorIndoor
Wall Plate IncludedNo
Number of Receptacles2.0
Outlet TypeStraight Blade
Application SectorCommercial
NEMA Configuration Code5-15R
Warranty Type1-Year Limited Warranty
Operating Temperature Min-40.0 °C
Dielectric StrengthWithstands 1500V minimum
FeaturesSingle Piece Plated Steel Mounting Strap
