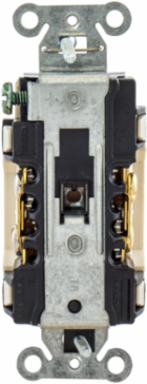

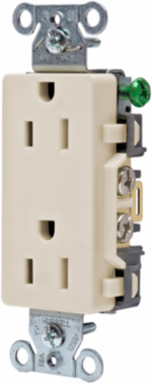

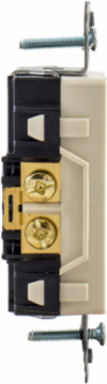

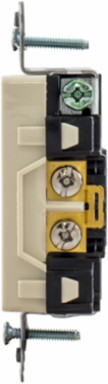

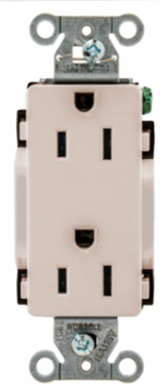

Hubbell Wiring Device-Kellems DR15LA Commercial Duplex Receptacle, 15A 125V, Light Almond, 3-Wire
Hubbell Wiring Device-Kellems DR15LA Commercial Duplex Receptacle, 15A 125V, Light Almond, 3-Wire
- MPN: DR15LA
- UPC: 783585127859
- PPN: HBL-DR15LA
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$5.69/ EA
Description
Straight Blade Devices, Receptacles, Duplex, Decorator/Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Light Almond, Single Pack.
Features
- Aesthetic Style Line® decorator design
- Smooth face
- Triple wipe contacts
Specifications
Dimensions
- Dimensions
- 1.29 in x 1.06 in x 3.28 in
- Height
- 3.28 in
- Weight
- 0.2 lb
Display SizeStandard Sized Product
Length1.29 in
Width1.06 in
Certifications and Compliance
- Nema Rating
- 5-15R
Conductor Related
- Number Of Wires
- 3-Wire
Wire Size#14 AWG to #10 AWG
General
- Application
- Commercial Specification Grade
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Item Type
- Decorator Duplex
- Material - Mounting Hardware
- Screw Mounting
- OEM Brand Name
- Hubbell Wiring Device-Kellems
- Series
- Commercial Specification Grade
- Type
- Standard Duplex
ColorLight Almond
Horsepower - Maximum0.5
MaterialNylon
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
StyleStyle Line Decorator
UPC783585127859
Electrical Ratings
- Amperage Rating
- 15 A
- Current / Amperage Rating
- 15 A
- Dielectric Strength
- Withstands 2,000V minimum
- Voltage Rating
- 125 V
- Wattage
- 1875 W
ConnectivityBack and Side Wired
Current Rating15 A
PhaseSingle Phase
Voltage Rating Description125 V
Logistics
- Carton Quantity
- 10 EA
Downloads
