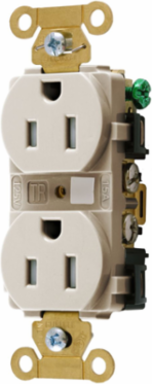

Hubbell Wiring Device-Kellems HBL5262LATR Tamper Resistant Duplex Receptacle, Industrial Grade, 15A 125V, 2-Pole 3-Wire Grounding, Light Almond
- MPN: HBL5262LATR
- UPC: 783585542447
- PPN: HBL-HBL5262LATR
- UNSPSC: 39121406
CAD
$30.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Tamper Resistant Duplex Receptacle, Industrial Grade, 15A 125V, 2-Pole 3-Wire Grounding, 5-15R, Light Almond.
Features
- Patented TR design eliminates plug-in difficulty and TR complaints
- Fed-Spec UL listing insures proven performance in demanding applications
- Brass mounting strap and Triple Wipe contacts
- High impact resistant face with circuit I.D. marking area
- Complies with National Electrical Code (NEC®) requirements for Tamper Resistant receptacles
- Tamper Resistant
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Horsepower - Maximum
- 0.5
- Length
- 3.28 in
- Amperage Rating
- 15 A
- Color
- Light Almond
- Environmental Conditions
- Tamper resistant
- Number of Poles
- 2-Pole
- Special Features
- Tamper Resistant
- Type
- Tamper-Resistant
- Wattage
- 1875 W
- Voltage Rating Description
- 125 V
- Width
- 1.32 in
- General Literature Asset 1 Display Text
- Heavy Duty Tamper-Resistant Receptacles
- General Literature Asset 3 Display Text
- Pulp & Paper Solutions
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A04A060
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.100 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 20.000 lb.
Current / Amperage Rating15 A
Industry Standard(s)CSA Certified 22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical: Current Interrupting Certified for current interrupting at full rated current;Dielectric Voltage: Withstands 2,000V minimum;Mechanical: Product Identification Ratings are a permanent part of the device;Terminal Accommodation: #12-10 AWG stranded or solid copper wire only;Terminal Identification: Terminals identified in accordance with UL 498 and CSA;Environmental: Flammability: UL 94V-2;Operating Temperature: Maximum continuous 75°C;minimum -40°C (w/o impact)
ApplicationExtra Heavy Duty Specification Grade
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating5-15R
Number of Wires3-Wire
StandardCSA Certified 22.2, No. 42;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Voltage Rating125 VAC
Wire Size#12 AWG to #10 AWG
Weight0.2 lb.
Engineering Drawing 1 Display TextHBL5262LATR AutoCAD Drawing
General Literature Asset 2 Display TextTamper-Resistant Receptacles
ConnectivityBack and Side Wired
Nema Rating5-15R
Number Of Wires3-Wire
StyleSmooth Face
Description - InvoiceDUP RCPT, IND, TR, 15A/125V, 5-15R, LA
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
SeriesExtra Heavy Duty
BOX SIZE3.548x9.858x4.298 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783585542447
Case - Total Units100 EA
NAICS Code335931A102
