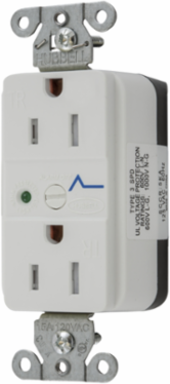

Hubbell Wiring Device-Kellems SNAP5262WS Duplex Surge Protection Receptacle, 15A 125V, Tamper Resistant, LED Indicator
- MPN: SNAP5262WS
- UPC: 783585252032
- PPN: HBL-SNAP5262WS
- UNSPSC: 39121406
CAD
$151.23
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Receptacles, Duplex, SNAPConnect®, Surge supression, Tamper Resistant, LED Indicator, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Nylon, White
Features
- Audible SNAP, indicates solid connection
- Reduces installation time
- Surge supression, Tamper-Resistant, LED Indicator
- Quick Connect- SNAPConnect®, Tamper Resistant, Surge Supression, LED Indicator
Specifications
Key Specifications
- Country of Origin
- China
- Dimensions
- 3.28 in x 1.75 in x 1.75 in
- Horsepower - Maximum
- 0.5
- Length
- 3.28 in
- Amperage Rating
- 15 A
- Color
- White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Quick Connect- SNAPConnect®, Tamper Resistant, Surge Supression, LED Indicator
- Type
- Surge Protection Receptacle
- Wattage
- 1875 W
- Voltage Rating Description
- 125 V
- Width
- 1.75 in
- General Literature Asset 2 Display Text
- SNAPConnect® and EdgeConnect® screwless termination
- Connectivity
- Connectorized
- Nema Rating
- 5-15R
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A44
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A44A420
- Current Rating
- 15 A
- Series
- SNAPConnect® Series
- BOX SIZE
- 4.300x11.000x4.600 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585252032
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- NAICS Code
- 335999E509
Current / Amperage Rating15 A
Height1.75 in
Industry Standard(s)Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical: Current Interrupting- Certified for current interrupting at full rated current;Electrical: Dielectric Voltage- Withstands 2,000V minimum;Mechanical: Product Identification Ratings are a permanent part of the device;Environmental: Flammability- UL 94V-2;Environmental: Operating Temperature- Maximum continuous 75°C;minimum -40°C (w/o impact)
ApplicationExtra Heavy Duty Specification Grade
Dielectric StrengthWithstands 2,000V minimum
NEMA Rating5-15R
Number of Wires3-Wire
Size3.28 in x 1.75 in x 1.75 in
StandardCertified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
Voltage Rating125 V
Wire Size#12 AWG
Weight0.2 lb.
General Literature Asset 1 Display TextLeaders In Screwless Termination
General Literature Asset 3 Display TextSpikeShield® Surge Protective Devices
Display SizeStandard Sized Product
Number Of Conductors3-Wire Grounding
Number Of Wires3-Wire
StyleSmooth Face
Description - InvoiceSNAP SPD RCPT, 15A 125V, TR, WHITE
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.8 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight12.500 lb.
Lowest Level UOMEach
