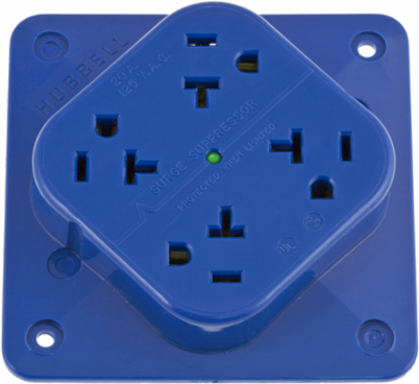

Hubbell Wiring Device-Kellems HBL420S 4-PLEX Surge Suppression Receptacle 20A 125V, 2-Pole, 3-Wire, LED Indicator
- MPN: HBL420S
- UPC: 783585017877
- PPN: HBL-HBL420S
- UNSPSC: 39121610
CAD
$244.17
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
4-PLEX, Surge Suppression Receptacle, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R
Features
- Surge supression with lights, 80 joules/6500A per mode
- Anchor hole and loop feature secures solid wire for fast, easy terminations
- Triple wipe contacts
- Easily accessible break-off tabs for split wiring
- Three conductors energize all four outlets
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Poles
- 2-Pole
- Current Interrupting Capacity
- 1000 A
- Surge Current Rating
- 6500 A per mode
- Phase
- Single Phase
- Height
- 4.30 in
- Length
- 4.30 in
- Weight
- 0.35 lb.
- Material Base
- PBT
- Material Ground Contacts
- Brass
- Material Mounting Hardware
- Mounting Screws
- Flammability Rating
- UL 94 V-2
- NEMA Rating
- 5-20R
- Indicator Type
- LED Only
- Color
- Blue
Voltage125 V
Wires3-Wire
Surge Suppression Energy80 joules
Frequency60 Hz
Circuit TypeGrounding
Width0.92 in
Size4.30 in x 0.92 in x 4.30 in
Material FacePolycarbonate
Material Power ContactsBrass
Material Ground PlatePlated Steel
Dielectric Voltage2000 V minimum
Operating Temperature Range-40 C to 75 C
Industry StandardsCSA 22.2 No. 42, UL 498, NEMA WD-6 compliant
ConnectivityTerminal Screws
Country of OriginPR
