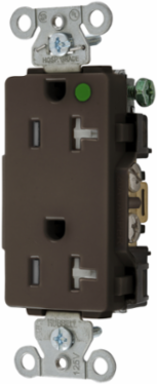

Hubbell Wiring Device-Kellems 2182TRA Tamper Resistant Decorator Duplex Receptacle, 20A 125V, 2-Pole, Brown
- MPN: 2182TRA
- UPC: 783585542034
- PPN: HBL-2182TRA
- UNSPSC: 39121406
CAD
$39.77
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Straight Blade Devices, Tamper Resistant Decorator Duplex Receptacle, Hospital Grade, Hubbell-Pro, 20A 125V, 2- Pole 3-Wire Grounding, 5-20R, Brown
Features
- Tamper-resistant shutter complies with national electrical code requirements
- Triple wipe contacts
- High impact resistant decorator face
- Steel mounting strap
- Tamper Resistant, USA Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Mexico
- Dimensions
- 3.28 in x 1.57 in x 1.15 in
- Horsepower - Maximum
- 1
- Length
- 3.28 in
- Amperage Rating
- 20 A
- Color
- Brown
- NEMA Rating
- 5-20R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.57 in x 1.15 in
- Standard
- Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
- Voltage Rating
- 125 VAC
- Wire Size
- #12 AWG to #10 AWG
- Weight
- 0.2 lb.
- General Literature Asset 1 Display Text
- Duct Products Guide
- General Literature Asset 3 Display Text
- Heavy Duty Tamper-Resistant Receptacles
- Nema Rating
- 5-20R
- Number Of Wires
- 3-Wire
- Style
- Style Line decorator
- Description - Invoice
- HUBBELL-PRO HG DECO 20A/125V TR BR
- Harmonization Code
- 8536698000
- MSDS Flag
- No
- Sub Class Code
- A04A040
- Current Rating
- 20 A
- Series
- Hubbell-Pro
- BOX SIZE
- 3.700x9.900x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 00783585542034
- Case - Total Units
- 100 EA
- NAICS Code
- 335931A102
Current / Amperage Rating20 A
Height1.15 in
Industry Standard(s)Certified to CSA, C22.2, No. 42 File 285;Fed. Spec. W-C-596;NEMA® WD-6 Compliant;UL Listed to UL498 File No. E2186
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94V-2;Environmental - Operating Temperature - Maximum continuous 75°C, minimum -40°C (w/o impact);Mechanical - Product Identification - Ratings are a permanent part of the device;Mechanical - Terminal Accommodation - #12-#10 AWG stranded or solid copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
ApplicationHubbell-Pro Heavy Duty Hospital Grade
Dielectric StrengthWithstands 2,000V minimum
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesTamper Resistant, USA Product
TypeDuplex Receptacle
Wattage2500 W
Voltage Rating Description125 V
Width1.57 in
General Literature Asset 2 Display TextHubbell-Pro Hospital Grade Receptacles
ConnectivityBack and Side Wired Screw Terminals
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA04
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number2182TR
Material - Mounting HardwareScrew Mounting
MaterialNylon
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.250 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight24.250 lb.
