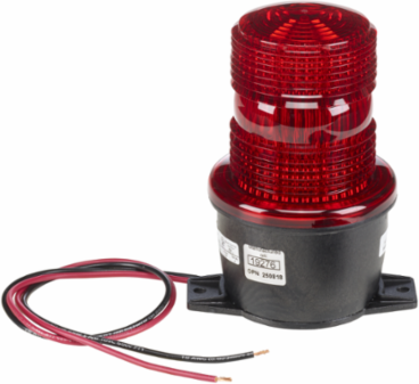

Federal Signal LP3TL-120R StreamLine LED Light, Low Profile, UL and cUL, 120VAC, T-Mount, Red
- MPN: LP3TL-120R
- UPC: 782979225058
- PPN: FDS-LP3TL-120R
- UNSPSC: 39111706
CAD
$283.10
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Model LP3L low profile LED light is offered in four mounting configurations: LP3PL with an integrated 1/2-inch NPT pipe mount, LP3ML featuring an integrated 1/2-inch NPT male pipe mount, LP3TL featuring a T-formation base with two mounting holes for wall or flush mounting, and the LP3SL featuring a three-hole surface mounting configuration.Models LP3ML, LP3SL, and LP3TL include a surface mount gasket to complete the Type 4X installation. An optional dome guard is available for use with the LP3ML, LP3SL and LP3TL when installed on a panel. All models include the vibration-resistant, double-contact, bayonet-style 50,000-hour LED module.StreamLine® products are designed for OEM applications.
Features
- Available in 24 Vdc and 120 Vac
- T-mount (TL), integrated 1/2-inch NPT pipe mount (PL), 1/2-inch NPT male pipe mount (ML), or surface mount (SL)
- Five lamp/lens colors: Amber, Blue, Clear, Green, and Red
- 50,000-hour LED
- Screw-on lens
- Indoor/outdoor use
- Optional wire lens guard
- Type 4X, IP66 enclosure - LP3SL, LP3PL, LP3ML
- Type 4X, IP55 enclosure - LP3TL
- IP69K compliant - LP3SL, LP3PL, LP3ML
- CSA Certified
- UL and cUL Listed
- CE and UKCA Certified
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|---|
| Weight | 0.46 lbs |
| Certification Listing | CSA, UL, cUL |
| Flash Pattern Type | Steady |
| Lens Color | Red |
| Operating Current Amps | 0.6 |
| Operating Voltage | 120 Vac |
| Visual Signals Mount Type | T-Mount |
| Environmental Rating | Ordinary Location |
| Lead Time | Ships in 10 Business Days |
| Height | 5.1 in |
|---|---|
| Body Color | Black |
| Diameter | 3.13 in (79.502 mm) |
| Availability | Ships in 10 Business Days |
| Mount Type | T-Mount |
| Operating Temp. | -31˚ to +150˚F (-35˚ to +66˚C) |
| Visual Signals Lens Color | Red |
| Visual Signals Operating Voltage | 120VAC |
| Enclosure Rating | IP55, IP66, IP69K, Type 4X |
| Product Life Cycle Status | Completed |
