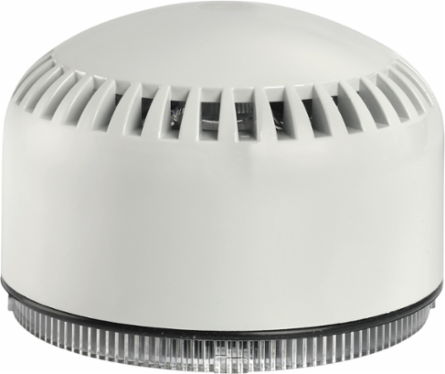

StreamLine Modular Electronic Sounder, UL and cUL, Gray, Base Sold Separately
Federal Signal

Federal Signal SLM700GY StreamLine Modular Electronic Sounder, UL and cUL, Gray, Base Sold Separately

  • MPN: SLM700GY
  • UPC: 782979232100
  • PPN: FDS-SLM700GY
  • UNSPSC: 32151501

CAD

$225.62

/ EA

Available to Order

Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Model slm700 is a multifunctional electronic sounder developed with a multiple input technology that produces two different tones (one per channel), controllable via wiring selection.There are 64 unique tones to select from across two switches (32 tones per switch). The volume of the tone is adjustable between 86-105 dBa @ 1m at three output levels (high, medium, low) through an integrated button. Model slm700 body material is a self-extinguishing polycarbonate material with high impact and UV resistance suitable for outdoor applications.* Recent changes have been made to this product line. Previous product data can be found in the documents below or by visiting slm Documents or Rev A Tones.

Features

  • Compatible with 12-24VAC/DC or 120-240VAC*
  • PLC compatible with PNP or NPN connections (Except Dock Base, only NPN)
  • Choice of 64 selectable tones (32 per input selectable via DIP switch)
  • Produces two tones at three adjustable tone levels
  • Adjustable volume between 76 dBa to 95 dBa @10' (86-105 dBa @ 1m)
  • Seven mounting base options
  • Type 3R, IP65 enclosure
  • CE Certified
  • UL and cUL Listed

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Italy
Body Color
Gray
dBa 1 Meter
86-105 dBa
Availability
In Stock - Ships in 2 Bus Days
Operating Temp.
-40˚ to +131˚F (-40˚ to +55˚C)
Audible Signals Body Color
Gray
Height
2.44 in, 6.1976 cm
Weight0.49 lbs
Certification ListingCE, UL, cUL
dBa 10 Ft76-95 dBa
Mount TypePipe, Surface, Wall
Operating Voltage12-24VAC-DC, 120-240VAC
Depth2.44 in, 6.1976 cm
Width3.9 in, 9.906 cm
