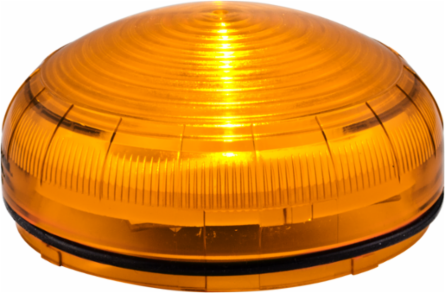

StreamLine Modular LED Light, Low Profile, UL and cUL, Fresnel Lens, Amber, Base Sold Separately
Federal Signal

Federal Signal SLM350A StreamLine Modular LED Light, Low Profile, UL and cUL, Fresnel Lens, Amber, Base Sold Separately

  • MPN: SLM350A
  • UPC: 782979232223
  • PPN: FDS-SLM350A
  • UNSPSC: 39111706

CAD

$245.30

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Models SLM300 and SLM350 offer a multifunctional LED beacon with high optical performance. Developed with a multiple input technology, these models offer three separate light effects (steady, flashing and strobe) controllable via wiring selection. The steady light option offers a consistent light source. The flashing mode consists of a single-flash strobe effect, while the strobe effect is a 3X Flash, 5x flash, or random. Two integrated buttons allow the user to select a different light effect per channel and adjust the light output brightness (33%, 66%, 100%) for a truly custom application. Model SLM300 includes an opaque lens for signaling in close proximities. Model SLM350 includes a fresnel lens for long distance signaling. The body material is a self-extinguishing polycarbonate material with high impact and UV resistance suitable for outdoor applications.* Recent changes have been made to this product line. Previous product data can be found in the documents below or by visiting SLM Documents or Rev A Tones.

Features

  • Compatible with 12-24VAC/DC or 120-240VAC*
  • PLC compatible with PNP or NPN connections (Except Dock Base, only NPN)
  • Three flash patterns: steady, flashing and strobe
  • Three light intensity levels: 33%, 66% or 100%
  • 100,000 hour LED
  • Five lamp/lens colors: Amber, Blue, Clear, Green and Red
  • Seven mounting base options
  • Type 4X, IP66 enclosure
  • IP69K** compliant
  • CE Certified

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Italy
Body Color
Gray, Red
Diameter (in)
3.9
Flash Pattern Type
Steady/Flashing/Simulated Strobe
Availability
In Stock - Ships in 2 Bus Days
Lens Style
Directional
Operating Temp.
-40˚ to +131˚F (-40˚ to +55˚C)
Visual Signals Lens Color
Amber
Depth
1.67 in, 4.2418 cm
Diameter
3.9 in, 9.906 cm
Weight0.24 lbs
Certification ListingCE, UL, cUL
Diameter (mm)99.06
Flashes Per MinuteFlash Mode 120 (+/-10), Strobe Mode 85 (+/-10)
Lens ColorAmber
Mount Type2-Stack Dock Base, 3-Stack Dock Base, Deep Base, Shallow Base, Twin Mount, Pipe, Wall
Operating Voltage12-24VAC-DC, 120-240VAC
Visual Signals Lens StyleDirectional
Height1.67 in, 4.2418 cm
